Product Description

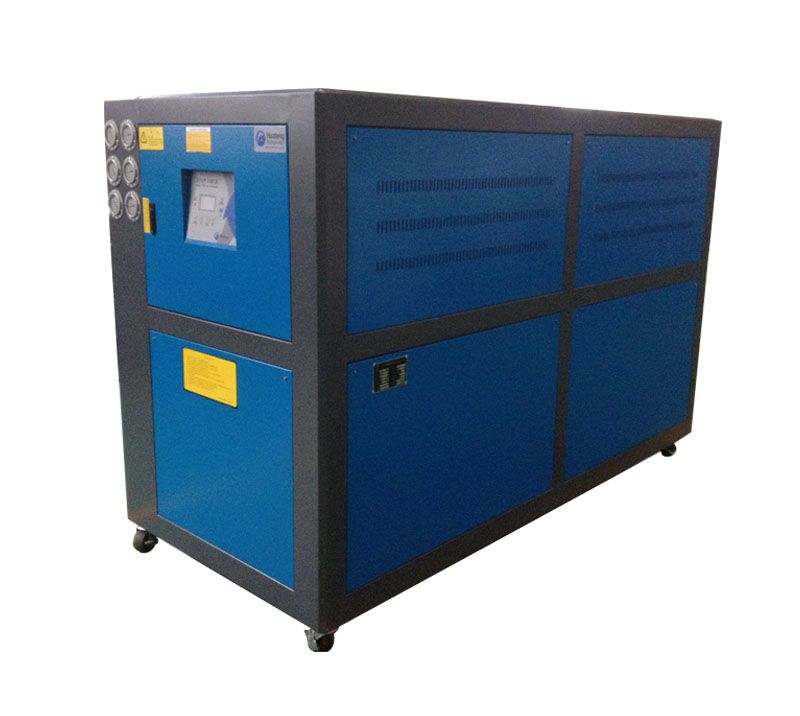

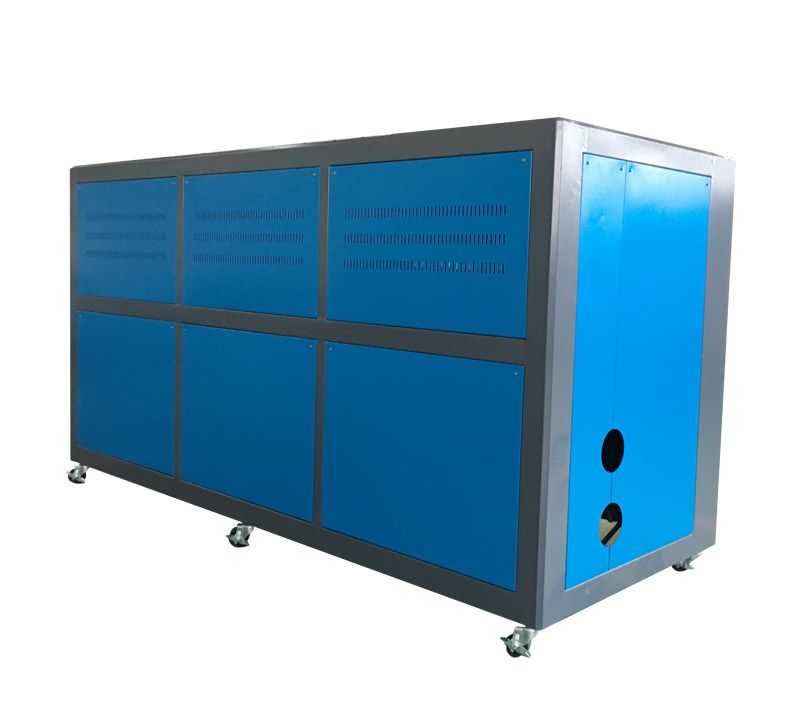

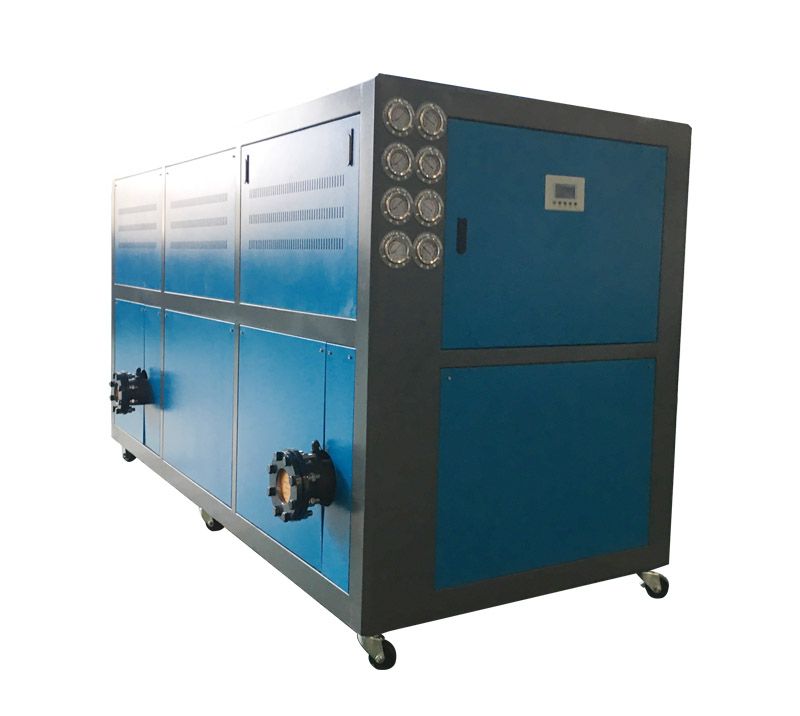

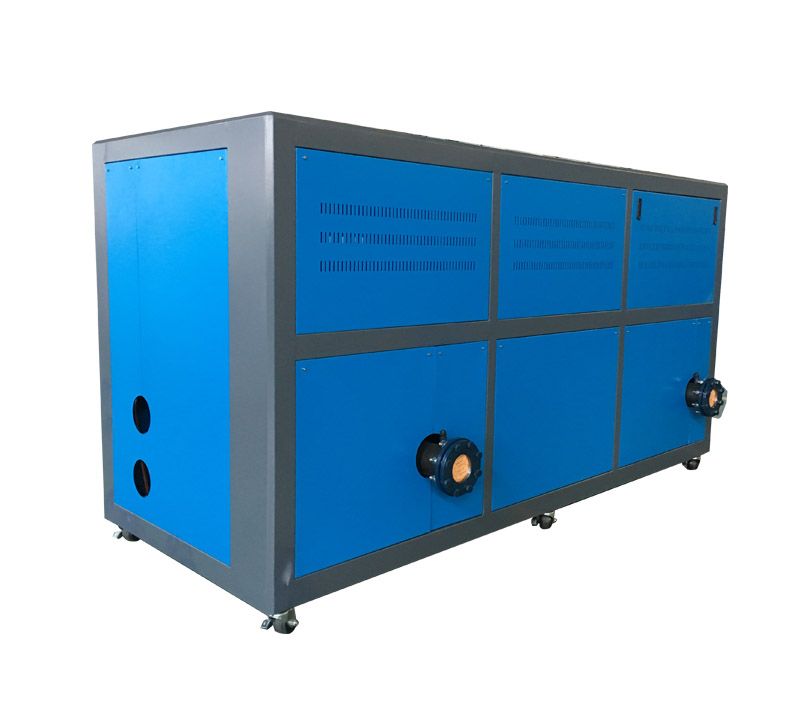

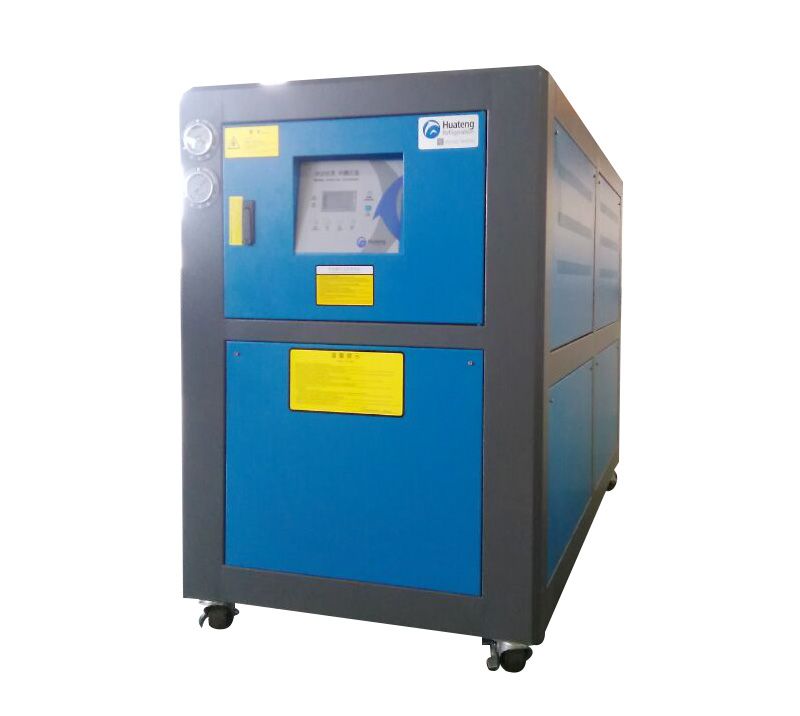

The OEM Water Cooled Scroll Chiller from HuaZhao offers a highly efficient cooling solution suitable for diverse commercial and industrial applications. As one of the leading Scroll Chiller Manufacturers, HuaZhao provides chillers with capacities ranging from 9KW to 120KW, integrating imported fully-closed scroll compressors and high-efficiency heat exchangers. The OEM Water Cooled Scroll Chiller is engineered for optimized performance, compact design, and user-friendly maintenance.
1. Energy with high efficient
2. Operation noise and vibration is low
3. No friction loss
4. Low starting current
5. High system sustainability
6. Environmental protection
7.Compact and Efficient Design
8.Microcomputer Control
1 Compressor reverse protective
2 Freeze protector protective
3 Refrigerant safety valve
4 Buzzer
5 High-pressure gauge and Low-pressure gauge
6 Power phase failure protector
7 Coil over-heat protector
8 Temperature auto-switch
9 Refrigerant shortage protective
The OEM Water Cooled Scroll Chiller is widely used across multiple industries due to its versatility and efficiency. Some applications include:
Air Conditioning for Commercial Buildings: The chiller provides reliable cooling for large commercial and industrial buildings and can also be utilized in residential spaces.
Process Cooling in Industrial Settings: Ideal for process cooling, the OEM Water Cooled Scroll Chiller is used in manufacturing plants, chemical facilities, and food processing centers, efficiently removing heat from equipment.
Refrigeration for Perishable Goods: The chiller is a popular choice in supermarkets, restaurants, and food processing facilities to maintain low temperatures for perishable items, ensuring freshness and quality.
HuaZhao's selection of Industrial Chillers includes water-cooled, air-cooled, and remote air-cooled options, with capacities ranging from 15 to 5,000 tons. This wide array of options allows businesses to find the ideal OEM Water Cooled Scroll Chiller or customized chiller scroll system to fit their specific cooling needs.
As one of the leading Scroll Chiller Manufacturers, HuaZhao stands out for its dedication to quality, efficiency, and innovation. Our OEM Water Cooled Scroll Chiller models are designed to provide sustainable and effective cooling, backed by advanced technology and stringent quality standards. With HuaZhao, you gain access to reliable, energy-efficient scroll chiller solutions that help lower operational costs while meeting the demands of large-scale industrial and commercial environments.
| Water cooled scroll type chiller(R-134a) | ||||||||||
| Model | HTB-M10S | HTB-M15S | HTB-M20S | HTB-M23S | HTB-M30S | HTB-M30S | HTB-M41S | HTB-M61S | HTB-M82S | |
| Cooling Capacity | KW | 9.5 | 15.1 | 20.4 | 23.2 | 29.8 | 30.2 | 40.8 | 61.2 | 81.6 |
| Kcal/Hr | 8170 | 12986 | 17544 | 19952 | 25628 | 25972 | 35088 | 52632 | 70176 | |
| RT | 2.7 | 4.29 | 5.8 | 6.6 | 8.47 | 8.59 | 11.6 | 17.4 | 23.2 | |
| Power | 50HZ | 3P-380V-50HZ | ||||||||
| Comprosser | Mode | Full closed high efficiency flexible scroll compressor | ||||||||
| Input power(KW) | 2.19 | 3.49 | 4.55 | 5 | 6.8 | 6.98 | 9.18 | 13.65 | 18.2 | |
| Rated load current(A) | 5.4 | 9.25 | 11.2 | 10.8 | 16.7 | 18.5 | 22.4 | 33.6 | 44.8 | |
| Wiring specification | 4 | 6 | 6 | 6 | 10 | 10 | 25 | 25 | 25 | |
| Add unloading way | 0,100% | 0,50%,100% | 0,33%,66%, 100% | 0,25%,50%, 75%,100% | ||||||
| Condensor | Cooling water temp（℃） | Inlet temp 30℃/outlet temp 35℃ | ||||||||
| Cooling water flow(m³/h) | 2.04 | 3.25 | 4.39 | 4.99 | 6.41 | 6.49 | 8.77 | 13.16 | 17.54 | |
| Waterpipe diameter(DN) | 32 | 32 | 40 | 40 | 40 | 40 | 50 | 50 | 65 | |
| Evaporater | Freeze water temp（℃） | Inlet temp 12℃/outlet temp 7℃ | ||||||||
| Freeze water flow（m³/h) | 1.63 | 2.6 | 3.51 | 3.99 | 5.13 | 5.19 | 7.02 | 10.53 | 14.04 | |
| Waterpipe diameter(DN) | 32 | 32 | 32 | 32 | 40 | 40 | 40 | 50 | 65 | |
| Safeguard | Water pump protection chain, electric leakage protection, overload protection, overpressure, the power reverse phase, open phase protection, abnormal refrigerant protection, exhaust temperature protection, Lack of water protection, etc. | |||||||||
| Size | L(mm) | 1210 | 1250 | 1250 | 1400 | 1400 | 1500 | 1640 | 1900 | 2500 |
| W(mm) | 650 | 700 | 700 | 700 | 700 | 700 | 700 | 850 | 800 | |
| H(mm) | 1080 | 1100 | 1100 | 1100 | 1100 | 1100 | 1100 | 1250 | 1250 | |
| Units Weight | Kg | 240 | 300 | 320 | 340 | 370 | 440 | 560 | 630 | 720 |
1、Above parameters refrigerating capacity based on the condensation temperature 40℃, evaporation temperature 2℃。
2、Above is my company's industrial water-cooled water chiller parameters, evaporator is shell and tube type, if there is a demand for the built-in bank、non-standard products of water pump, can be designed and manufactured according to the concrete situation.
3、In order to ensure technology constantly updated, the above parameters are subject to change without prior notice
4、The specific parameters for non-standard products, welcome consulting our technical department.
