Product Description

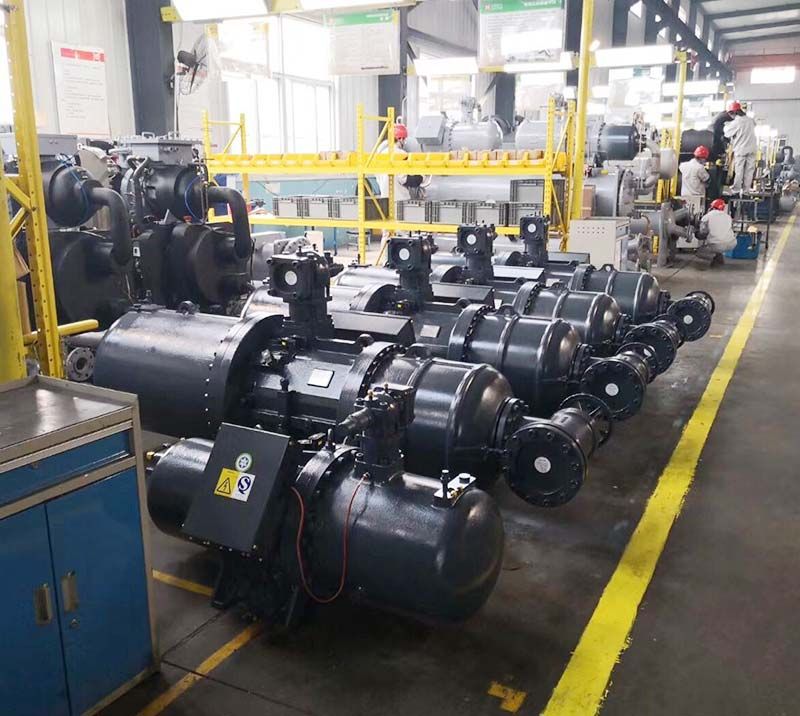

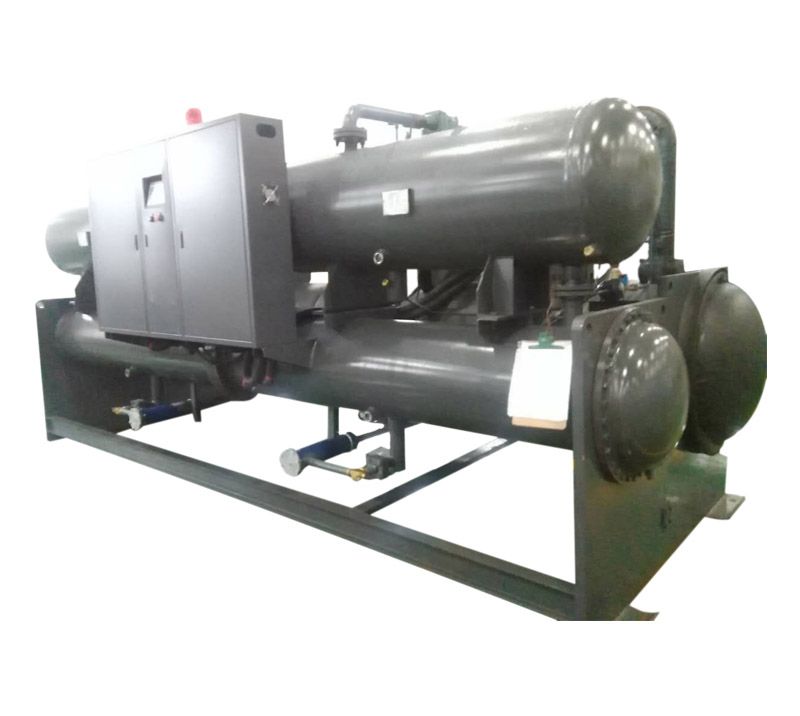

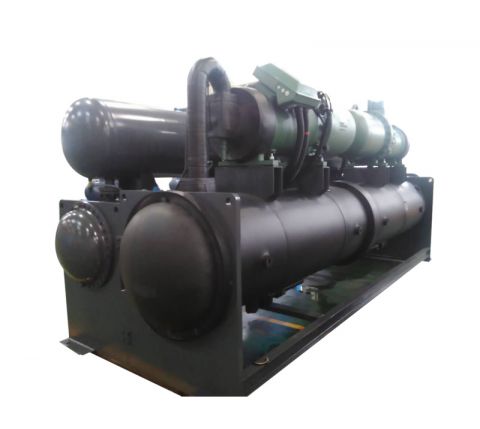

The series Water Cooled Screw Chiller adopts efficient semi-closed screw compressor. the compressor adopts a 5:6 asymmetric high-efficiency screw rotor, which is graded or steplessly energy regulated. It is automatically adjusted according to load changes and is more energy efficient. The unit heat exchanger adopts high-efficiency heat exchange tube to improve the refrigeration efficiency, and the unit is equipped with multiple protections to make the unit operate safely and reliably.
1. Energy with high efficient
2. Operation noise and vibration is low
3. No friction loss
4. Low starting current
5. High system sustainability
6. Environmental protection
As a professional Screw Water Cooled Chiller, our product such as Water Cooled Screw Chiller can be customized according to customer's request.
1 Compressor reverse protective
2 Freeze protector protective
3 Refrigerant safety valve
4 Buzzer
5 High-pressure gauge and Low-pressure gauge
6 Power phase failure protector
7 Coil over-heat protector
8 Temperature auto-switch
9 Refrigerant shortage protective
Model | HTK-M390/2 | HTK-M440/2 | HTK-M500/2 | HTK-M530/2 | HTK-M590/2 | HTK-M700/2 | HTK-M800/2 | HTK-M930/2 | HTK-M1060/2 | HTK-M1200/2 | HTK-M1320/2 | HTK-M1500/2 | HTK-M1670/2 | |
Cooling Capacity | KW | 390 | 440 | 500 | 530 | 594 | 700 | 800 | 932 | 1060 | 1196 | 1324 | 1496 | 1670 |
Kcal/Hr | 335400 | 378400 | 430000 | 455800 | 510840 | 602000 | 688000 | 801520 | 911600 | 1028560 | 1138640 | 1286560 | 1436200 | |
RT | 110.89 | 125.11 | 142.17 | 150.7 | 168.89 | 199.03 | 227.47 | 265 | 301.39 | 340.06 | 376.46 | 425.36 | 474.84 | |
Power | 50HZ | 3P-380V-50HZ | ||||||||||||
Input power(KW) | 82.8 | 92.2 | 103.2 | 110.8 | 117.8 | 135.6 | 156.6 | 181.8 | 206 | 232.4 | 257.4 | 290.6 | 324.6 | |
EER | COP | 4.71 | 4.77 | 4.84 | 4.78 | 5.04 | 5.16 | 5.11 | 5.13 | 5.15 | 5.15 | 5.14 | 5.15 | 5.14 |
Freezing medium | R134a | |||||||||||||
control mode | Thermal expansion valve | |||||||||||||
Comprosser | Mode | Semi-closed double screw | ||||||||||||
Working style | Y-Δ/Δ-Δ | |||||||||||||
Capacity | 0,12.5%, 25%,37.5%, 50%,62.5%, 75%,87.5%, 100% | |||||||||||||
Condensor | Mode | Efficient external thread shell and tube type | ||||||||||||
Cooling water | In 30℃/Out 35℃ | |||||||||||||
tempreture | ||||||||||||||
Cooling water flow (m³/h) | 83.9 | 94.6 | 107.5 | 114 | 127.7 | 150.5 | 172 | 200.4 | 227.9 | 257.1 | 284.7 | 321.6 | 359.1 | |
Pressure loss (Kpa) | 58 | 58 | 63 | 63 | 65 | 65 | 67 | 67 | 67 | 70 | 70 | 71 | 72 | |
waterpipe | DN80×2 | DN80×2 | DN100×2 | DN100×2 | DN100×2 | DN100×2 | DN125×2 | DN125×2 | DN125×2 | DN150×2 | DN150×2 | DN150×2 | DN200×2 | |
Evaporater | mode | Efficient internal thread shell and tube type | ||||||||||||
Freeze water | In 12℃/Out 7℃ | |||||||||||||
tempreture | ||||||||||||||
Freeze water flow (m³/h) | 67.1 | 75.7 | 86 | 91.2 | 102.2 | 120.4 | 137.6 | 160.3 | 182.3 | 205.7 | 227.7 | 257.3 | 287.2 | |
Pressure loss (Kpa) | 58 | 58 | 63 | 63 | 65 | 65 | 65 | 66 | 67 | 68 | 68 | 70 | 70 | |
waterpipe | DN100 | DN100 | DN125 | DN125 | DN125 | DN150 | DN150 | DN150 | DN150 | DN200 | DN200 | DN200 | DN200 | |
Safeguard | High and low pressure protection; overload protection; anti-phase protection, compressor over temperature protection; | |||||||||||||
high pressure safety valve protection; oil pressure protection; exhaust over heat protection | ||||||||||||||
Weight | Kg | 2050 | 2050 | 2610 | 2820 | 3350 | 4040 | 4560 | 4900 | 5250 | 6320 | 6730 | 7100 | 7250 |
Size | L(mm) | 4200 | 4200 | 4400 | 4400 | 4600 | 4600 | 4600 | 4700 | 4800 | 4800 | 4800 | 4800 | 4800 |
W(mm) | 1350 | 1350 | 1480 | 1480 | 1560 | 1560 | 1620 | 1620 | 1620 | 1680 | 1680 | 1680 | 1680 | |
H(mm) | 1660 | 1660 | 1750 | 1980 | 1980 | 2100 | 2100 | 2200 | 2230 | 2230 | 2230 | 2230 | 2230 | |
Noise(dB) | 74 | 73 | 73 | 74 | 74 | 75 | 75 | 76 | 77 | 77 | 78 | 78 | 80 |
1. Above cooling capacity parameters are all based on the conditions of condensation temperature 40℃, evaporation temperature 2℃.
2. We can make order according to your requirement.
3. Please indicate the hot recycled if needed, as the recycle rate can be up to 25%-30% of the unit refrigerating capacity, the temperature can be up to 55℃.
Our company introduces advanced refrigeration components and technology from the USA, Denmark, Germany and France.
Huazhao's products are superior to others in great capability and operation, as well as high efficiency, environment protection and easy maintenance.
Huazhao has rich experience and is authorized by a professional corporation on quality.
Huazhao's products can be used in overseas enterprises and get a good reputation among customers due to high technology.
Huazhao sets full profiles for outgoing products and has an excellent team for after-sales service, including timely free maintenance and VIP treatment.
Huazhao is a growing enterprise with endless energy and makes a contribution to Refrigeration Field in China.
Huazhao has been focusing on providing professional solutions for all our foreign and domestic customers in different businesses and earning a good reputation, such as America, Argentina, Uruguay, Colombia, Chile, Sudan, Saudi Arabia, Oman, Thailand, Indonesia, Qatar, Bangladesh, Somalia, etc. Our company is the leading international chiller supplier, if you need know price about chiller, E-mail and call are welcome.
