Product Description

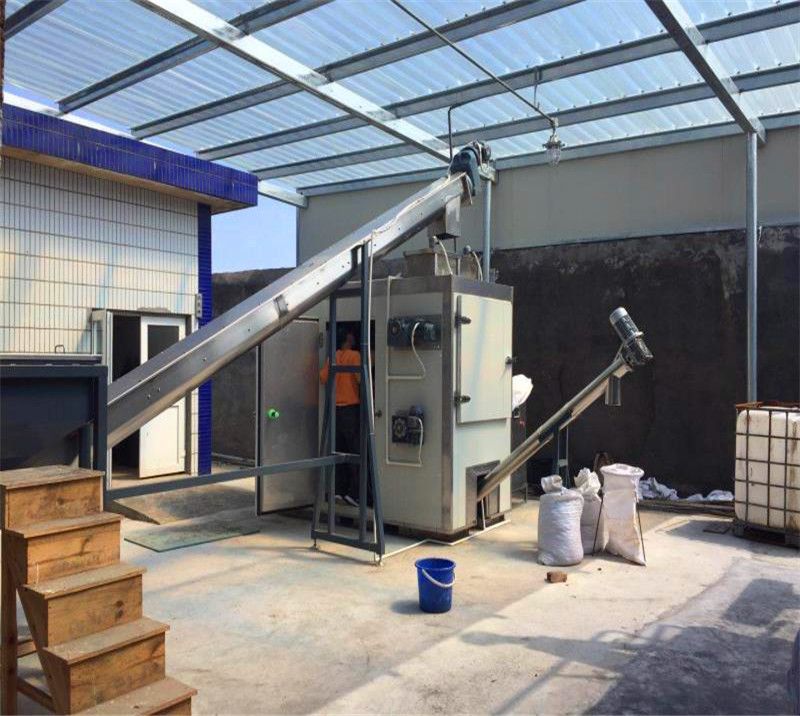

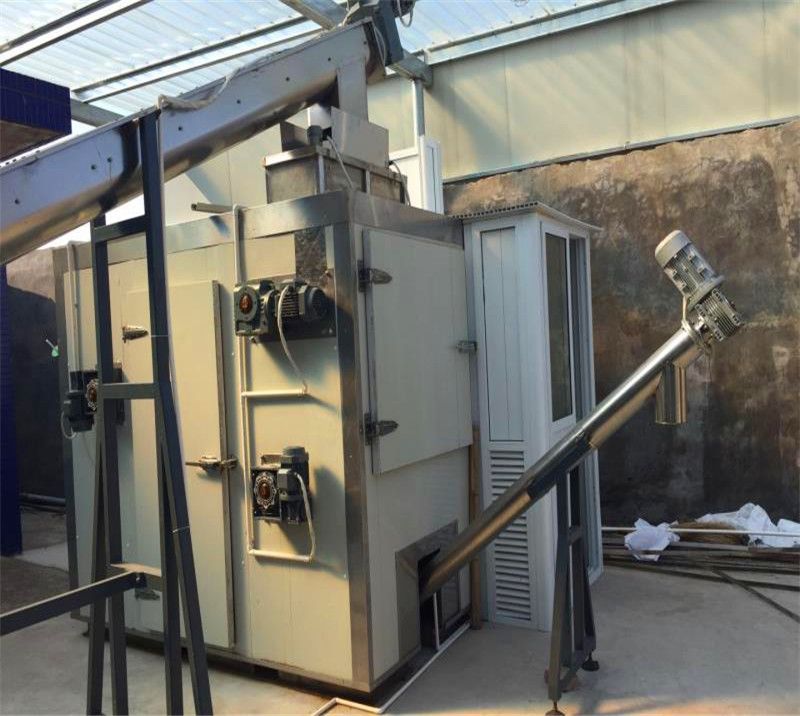

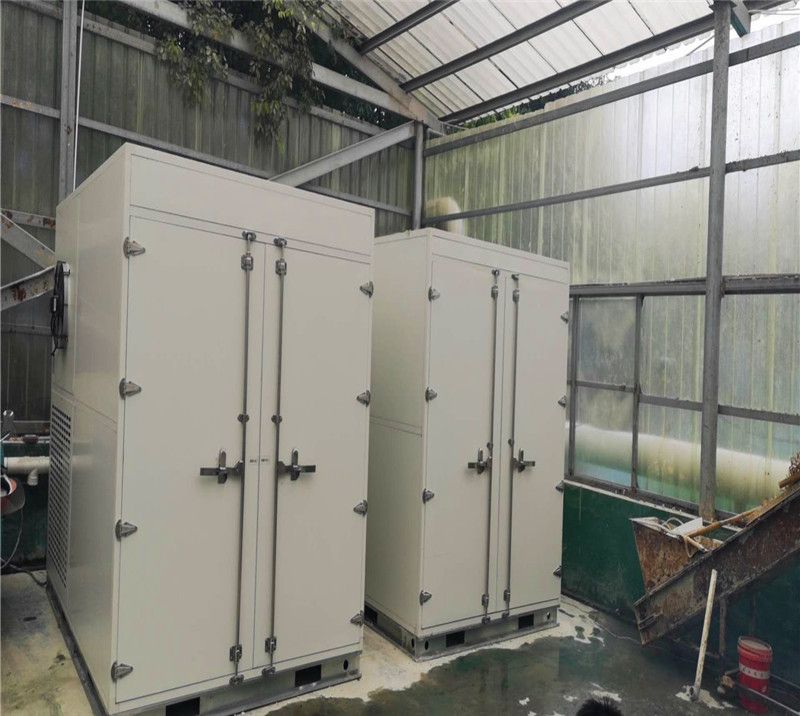

| Heat pump closed belt modular sludge drying system | |||||
| Model | HT-200IIJ4dZ | HT-200IIJ4dZ*2 | HT-200IIJ4dZ*3 | HT-200IIJ4dZ*4 | HT-200IIJ4dZ*5 |
| Water removed rate kg/24h | 4800 | 9600 | 14400 | 19200 | 24000 |
| Water removed capacity kg/h | 200 | 400 | 600 | 800 | 1000 |
| Operating power kw | 53 | 106 | 156 | 212 | 265 |
| Heating pump modular qty | 1 | 2 | 3 | 4 | 5 |
| Compressor qty | 4 | 8 | 12 | 16 | 20 |
| Cooling type | Water cooled | ||||
| Cooling water flow (15℃ temp difference) | 3 | 6 | 9 | 12 | 15 |
| Refrigerant | R134a | ||||
| Power supply | 380V/3P/50HZ | ||||
| Dry temperature | 48~56℃ ( air back) 65~80℃ (air outlet) | ||||
| Control system | Touch screen + micro computer | ||||
| Wet mud usable range | Moisture content (40%~82%) ( different adaptation) | ||||
| Dry material water content | Inverter adjust, moisture content (10%~60%) | ||||
| Molding method | slitter and strip | ||||
| Dimension L (mm) | 3250 | 6500 | 9750 | 13000 | 16250 |
| Dimension W (mm) | 1400 | 1400 | 1400 | 1400 | 1400 |
| Dimension H (mm) | 2080 | 2080 | 2080 | 2080 | 2080 |
| Structure type | whole set | assemble | assemble | assemble | assemble |
| Weight (kg) | 2000 | 4000 | 6000 | 8000 | 14000 |
Features
1. Wide temperature range,high effciency,enhaced vapor injection compressor;
2. High energy display control,high precision configuration,efficient heat recovery;
3. Modular stitching,transport,installation and removal are easier and more efficient.;
4. Environmentally friendly,energy saving,saving time;
5. The drying parameters are easy to control and wide adjustable range,drying quality is good;
6. Reasonable structure design: site survey, scientific planning, optimize investment costs, to ensure drying quality; easy installation and maintenance, smooth operation, easy to use;
7. Automatic temperature control,safe and environment protection.
This form is for reference only. We provide customized solutions based on customer's parameter requirements, providing each customer with one-to-one, more accurate parameter tables.
