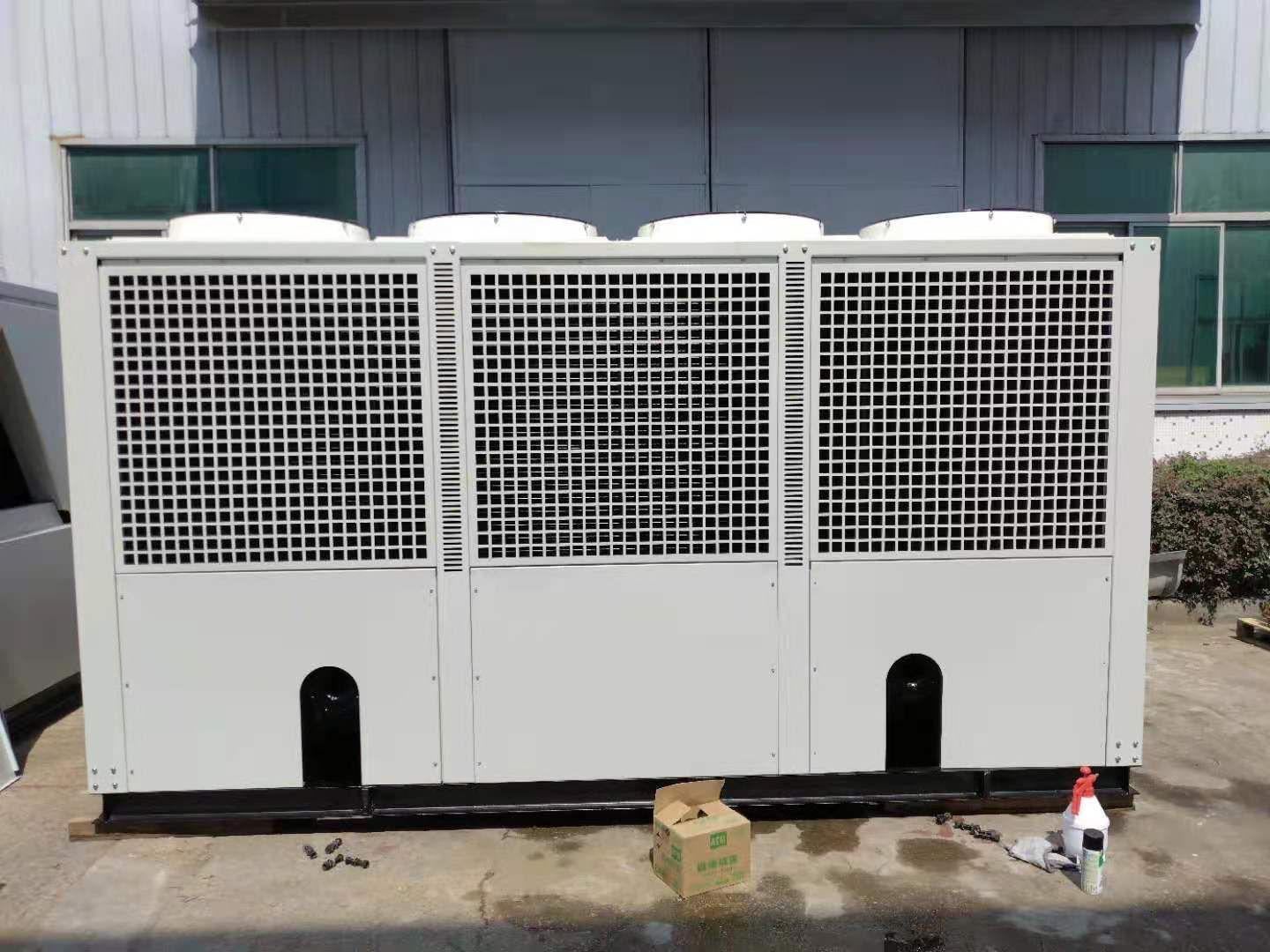

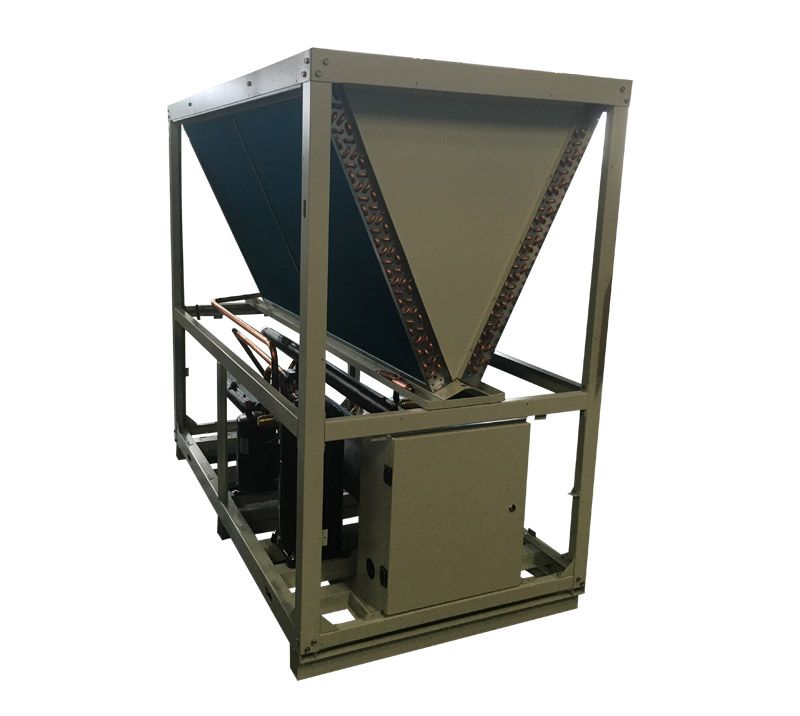

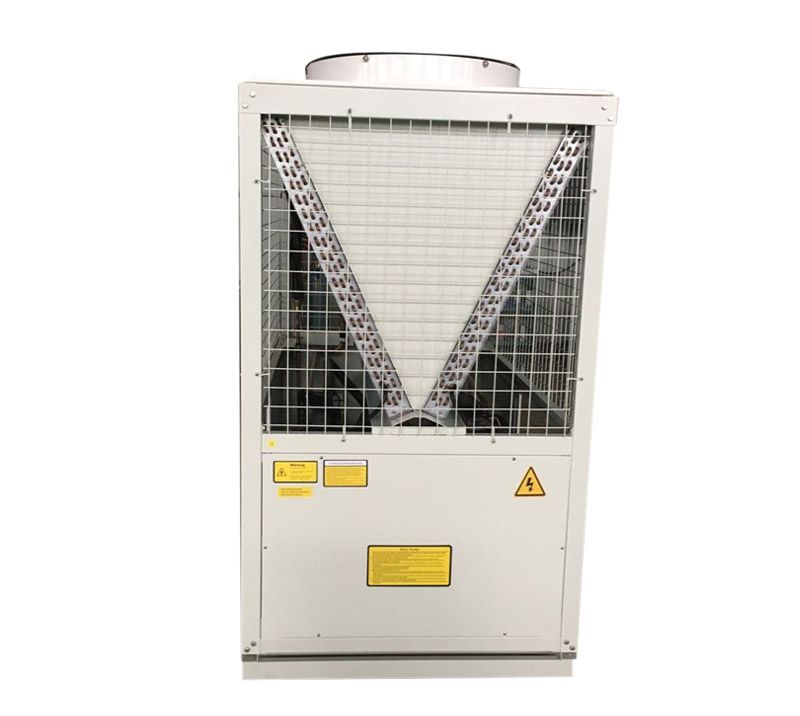

Modular Type Air Cooled Machine

Inquire Now None Download

Product Description

Description:

The series modular air cooled chiller cooling capacity from 7KW to 120KW. This series units integrates the characteristics of many other products, using imported full-closed scroll compressors,supplemented by high-efficiency heat exchangers and adopts microcomputer controllers, which makes the unit compact, reasonable layout, convenient to use and maintain. The user just need simply connect the pipeline of the water system and the required power supply,then can put into operation.

This series of chillers is widely used: it can provide process chilled water for industrial and mining enterprises such as textile, chemical and petroleum. The manufacturing technology of this product is mature and stable and reliable.

Features:

1. Scroll compressor for modle 12-180kw, semi-hermetic screw compressor for modle 130-2300kw. Each compressor is equipped with a crankcase heater and a thermal overload cut-out; the screw compressor is also complete with a built-in electronic protection with temperature sensor located directly in the motor winding and on the discharge line.

2. External rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles, protection level IP54, provided with a protective outlet grille.

Evaporator built with high efficiency shell and tube type heat exchanger, factory insulated with flexible close cell material.

3. Condenser built with seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins.

4. Refrigerant circuit complete with charge valves, filter drier, sight glass, gas-liquid separator, thermostatic expansion valve, high & low pressure switch. The heat pump unit is completed also with 4-way valve, liquid receiver and one way valve.

5. Hydraulic circuit built with galvanized pipe, complete with water discharge connection for shell and tube heat exchanger and flange type hydraulic connectors.

6. Electric panel consist of: Compressor contactor, fan motor contactor, compressor isolating switch, fan protection breaker, phase sequence relay and microprocessor with function display.

7. Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system.

Safety system:

1 Compressor reverse protective

2 Freeze protector protective

3 Refrigerant safety valve

4 Buzzer

5 High-pressure gauge and Low-pressure gauge

6 Power phase failure protector

7 Coil over-heat protector

8 Temperature auto-switch

9 Refrigerant shortage protectiv

Air cooled industrial chiller（environment-friendly）
Model		HTB-M9F	HTB-M14F	HTB-M18F	HTB-M21F	HTB-M27F	HTB-M27F	HTB-M36F	HTB-M54F	HTB-M72F
Cooling Capacity	KW	8.8	13.5	18	21	27	27	36	54	72
	Kcal/Hr	7568	11610	15480	18060	23220	23220	30960	46440	61920
	RT	2.5	3.84	5.12	5.97	7.68	7.68	10.24	15.35	20.47
Power	50HZ	3P-380V-50HZ
Comprosser	Mode	Full closed high efficiency flexible scroll compressor
	Input power(KW)	2.7	4.29	5.6	6.3	8.3	8.58	11.2	16.8	22.4
	Rated load current(A)	5.9	10	12.1	13.8	19.1	20	24.2	36.3	48.4
Wiring specification		4	6	6	6	10	10	16	25	35
Add unloading way		0,100%					0,50%,100%		0,33%,66%, 100%	0,25%,50%, 75%,100%
Condensor	Cooling fan(KW)	0.18×2	0.24×2	0.3×2	0.6×2	0.6×2	0.78×2	0.78×2	0.78×3	0.85×3
Condensor	Structure form	Efficient internal thread copper pipe hydrophilic aluminium fin+Auxiliary water spray falling film technology
Evaporater	Freeze water temp（℃）	Inlet temp 12℃/outlet temp 7℃
	Freeze water flow（m³/h)	1.51	2.32	3.1	3.61	4.64	4.64	6.19	9.29	12.38
	Waterpipe diameter(DN)	32	32	32	40	40	40	40	50	50
Safeguard		Overload protection,overpressure,inverse phase,open phase protection,exhaust temperature protection,abnormal refrigerant protection,water pump chain protection, etc.
Size	L(mm)	1200	1250	1400	1400	1700	1700	1700	2600	2800
	W(mm)	650	900	900	900	1000	1000	1000	1100	1200
	H(mm)	1250	1720	1750	1750	1900	1900	1920	1950	1980
Units Weight	Kg	220	280	300	320	350	420	540	610	690

Note:

1、Above parameters refrigerating capacity based on the condensation temperature 40℃, evaporation temperature 2℃。

2、Above is my company's industrial water-cooled water chiller parameters, evaporator is shell and tube type, if there is a demand for the built-in bank、non-standard products of water pump, can be designed and manufactured according to the concrete situation.

3、In order to ensure technology constantly updated, the above parameters are subject to change without prior notice

4、The specific parameters for non-standard products, welcome consulting our technical department.
