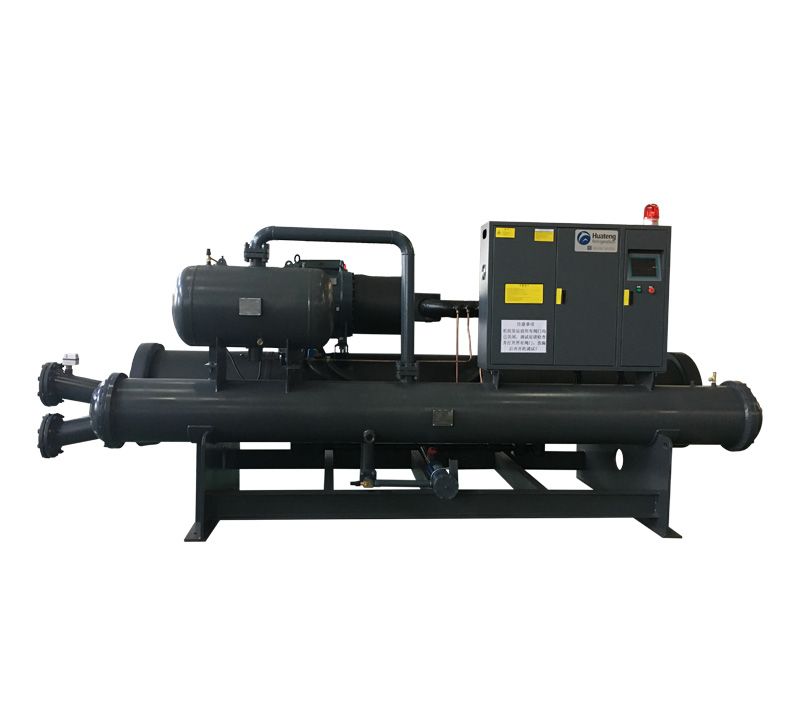

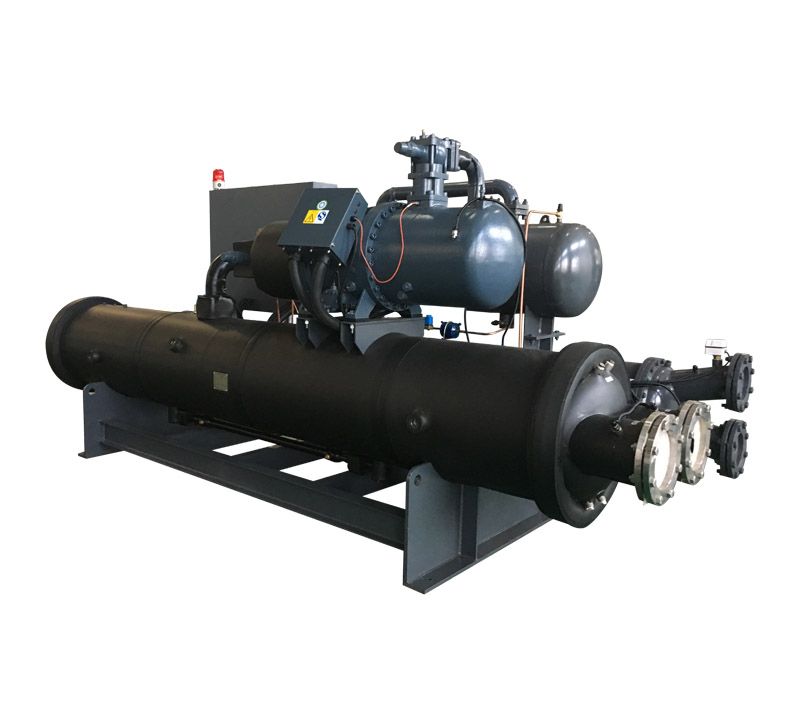

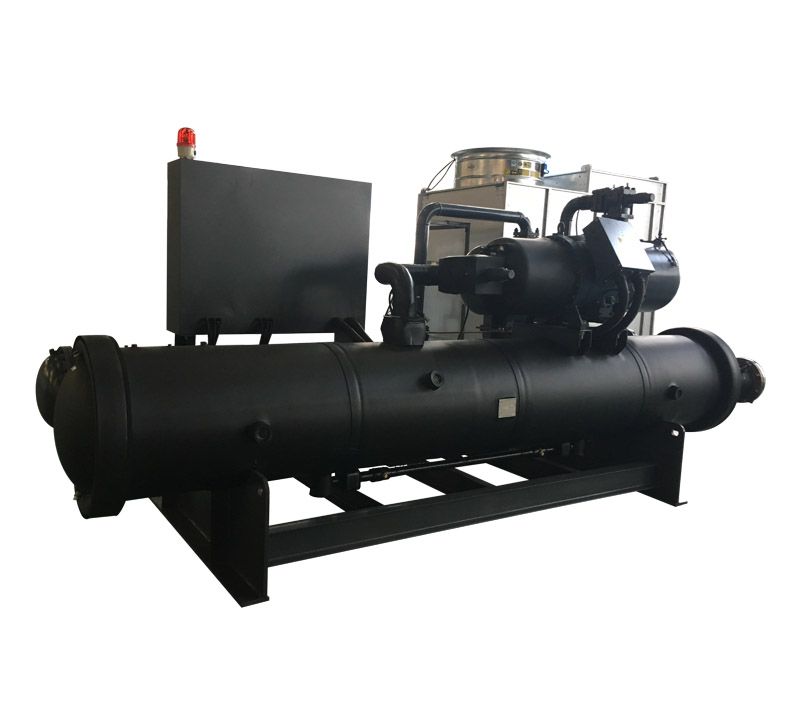

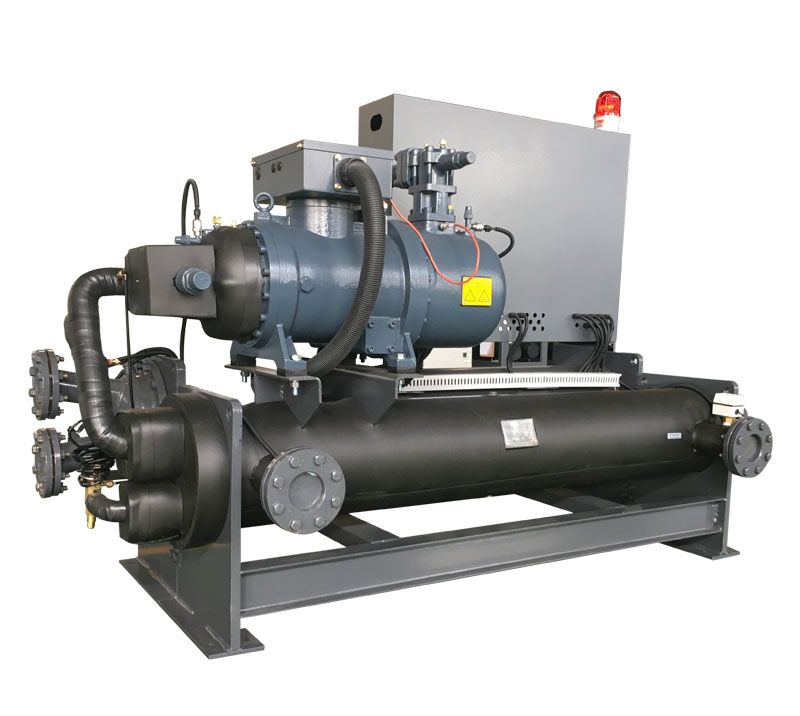

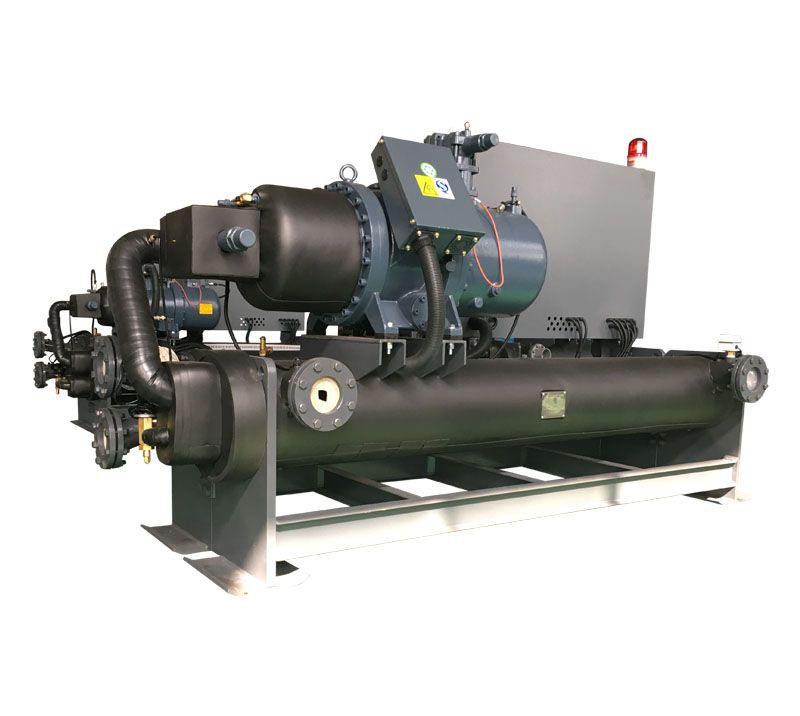

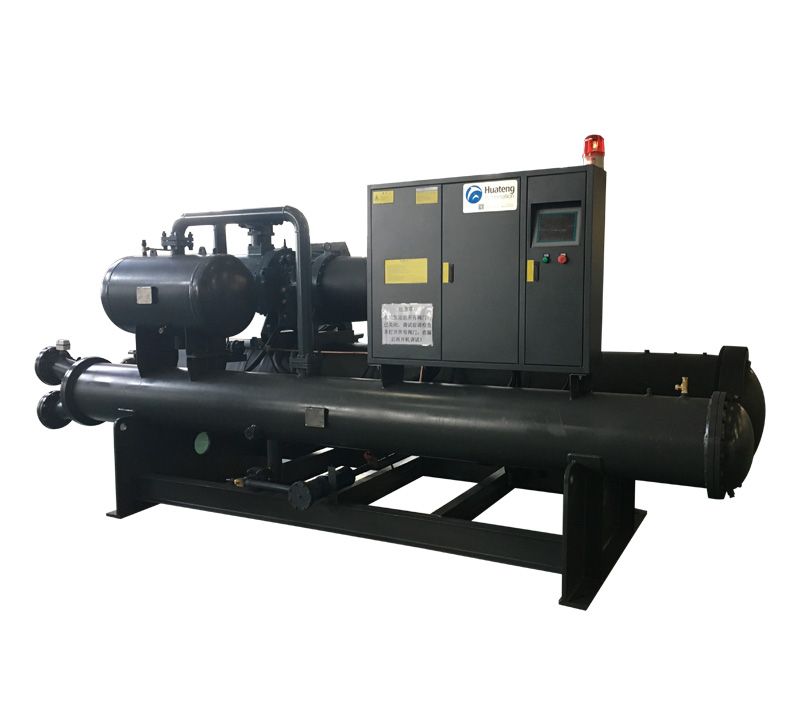

Water cooled screw chiller low temperature chillers(-25C)

Water cooled screw chiller low temperature chillers(-25C)

Inquire Now Next Product Download

Product Description

The Low Temperature Chillers used the efficient screw compressor from European, with its own superiority: high energy efficiency, low noise, high reliability, small footprint, easy installation, simple operation and high flexibility.

Low Temperature Chillers are widely used in surface engineering, medicine, chemical industry, metallurgy, leather, laser, electronics, plastic injection molding, printing and other industries. The series water chillers have too many models. It can achieve a perfect match for industrial applications.Get a quotation.

Safety system of the Low Temperature Chillers

1 Compressor reverse protective

2 Freeze protector protective

3 Refrigerant safety valve

4 Buzzer

5 High-pressure gauge and Low-pressure gauge

6 Power phase failure protector

7 Coil over-heat protector

8 Temperature auto-switch

9 Refrigerant shortage protective

Parameters

Water-cooled screw low temperature chiller(-15℃)
Model		HTK-180D-15	HTK-210D-15	HTK-250D-15	HTK-290D-15	HTK-330D-15	HTK-380D-15	HTK-420D-15	HTK-450D-15	HTK-510D-15
Cooling	KW	178	212	252	292	328	382	420	450	505
Capacity	Kcal/Hr	153080	182320	216720	251120	282080	328520	361200	387000	434300
	RT	50.61	60.28	71.65	83.03	93.26	108.62	119.42	127.95	143.59
Power	50HZ	3P-380V-50HZ
Input power(KW)		67.3	81.7	94.9	108.5	120.6	138.9	154.1	163.6	184
EER	COP	2.64	2.59	2.66	2.69	2.72	2.75	2.73	2.75	2.74
Refrigerant		R22
control mode		Thermal expansion valve
Comprosser	Mode	Semi-closed double screw
	Working style	Y-Δ/Δ-Δ
	Capacity	0-25%-50%-75%-100%
Condensor	Mode	Efficient external thread shell and tube type
	Cooling water	In 30℃/Out 35℃
	tempreture	In 30℃/Out 35℃
	Cooling water flow (m³/h)	38.3	45.6	54.2	62.8	70.5	82.1	90.3	96.8	108.6
	Pressure loss (Kpa)	55	55	55	58	58	58	58	58	61
	waterpipe size	DN100	DN100	DN100	DN100	DN100	DN125	DN125	DN125	DN125
Evaporater	mode	Efficient internal thread shell and tube type
	Freeze water	In -10℃/Out -15℃
	tempreture	In -10℃/Out -15℃
	Freeze water flow (m³/h)	36	42.8	50.9	59	66.3	77.2	84.8	90.9	102
	Pressure loss (Kpa)	52	55	55	58	58	58	58	61	61
	waterpipe size	DN100	DN100	DN100	DN100	DN100	DN125	DN125	DN125	DN125
Safeguard		High and low pressure protection,exhaust overheating protection, safety valve,antifreezing protection,current protection,
Safeguard		electric leakage protection,compressor thermal protection,over current protection,fault phase protection,Oil level protection etc.
Size	L(mm)	3100	3100	3150	3150	3200	3200	3300	3300	3500
	W(mm)	1100	1100	1200	1200	1250	1250	1360	1360	1420
	H(mm)	1520	1520	1670	1670	1750	1750	1850	1850	1980
Units Weight	Kg	2100	2280	2450	2510	2750	2860	2940	3600	4200
Noise(dB)		61	61	63	63	64	65	66	68	69

Model		HTK-580D-15/2	HTK-660D-15/2	HTK-760D-15/2	HTK-840D-15/2	HTK-900D-15/2	HTK-1010D-15/2
Cooling Capacity	KW	584	656	764	840	900	1010
	Kcal/Hr	502240	564160	657040	722400	774000	868600
	RT	166.05	186.52	217.23	238.84	255.9	287.18
Power	50HZ	3P-380V-50HZ
Input power(KW)		217	241.2	277.8	308.2	327.2	368
EER	COP	2.69	2.72	2.75	2.73	2.75	2.74
Refrigerant		R22
control mode		Thermal expansion valve
Comprosser	Mode	Semi-closed double screw
	Working style	Y-Δ/Δ-Δ
	Capacity	0,12.5%, 25%,37.5%, 50%,62.5%, 75%,87.5%, 100%
Condensor	Mode	Efficient external thread shell and tube type
	Cooling water	In 30℃/Out 35℃
	tempreture	In 30℃/Out 35℃
	Cooling water flow (m³/h)	125.6	141	164.3	180.6	193.5	217.2
	Pressure loss (Kpa)	55	55	55	58	58	58
	waterpipe size	DN100×2	DN100×2	DN125×2	DN125×2	DN125×2	DN125×2
Evaporater	mode	Efficient internal thread shell and tube type
	Freeze water	In -10℃/Out -15℃
	tempreture	In -10℃/Out -15℃
	Freeze water flow (m³/h)	118	132.5	154.3	169.7	181.8	204
	Pressure loss (Kpa)	52	55	55	58	58	58
	waterpipe size	DN150	DN150	DN150	DN200	DN200	DN200
Safeguard		High and low pressure protection,exhaust overheating protection, safety valve,antifreezing protection,current protection,
Safeguard		electric leakage protection,compressor thermal protection,over current protection,fault phase protection,Oil level protection etc.
Size	L(mm)	4200	4200	4600	4600	4950	4950
	W(mm)	2000	2000	2200	2200	2310	2310
	H(mm)	2100	2100	2250	2250	2300	2300
Weight	Kg	4600	44850	5100	5320	5620	5980
Noise(dB)		70	71	72	72	73	73

Note:

1.Refrigerating capacity nominal conditions of condenser water inlet temperature 30℃,water outlet temperature 35℃,evaporator water inlet temperature -10℃,water outlet temperature -15℃

2.In order to ensure technology constantly updated, the above parameters are subject to change without prior notice

3.This unit can be customized heat recovery according to the customer request,hot recycled is 25%-30% of unit refrigerating capacity,indicate the hot recycled in custom units.The highest hot water temperature of the heat recovery up to 55 degrees.

Pros of Water cooled Chillers

Water-cooled chillers are generally more efficient than air-cooled chillers
They have a quieter operation than air-cooled systems
They are suitable for both small-scale and commercial-scale cooling
Portable solutions are available for facilities with space constraints

Application

What industries use low temperature chillers?

The uses of industrial low temp chillers are expanding every year. Currently the industries that use low temperatures include: aerospace, medical, pharmaceutical, automotive, defense, plastic manufacturing, chemical, plant oil extraction, food production, and more.

What applications require low temperatures?

Low temperatures are used to: safely store and transport fragile lab samples, temper metals and other materials for extra strength and durability, test materials for use in extreme temperatures/high altitudes/outer space, cool sensitive medical equipment, create superconductors, safely store and transport hazardous chemicals, super chill gasses for plant oil extraction, flash freeze food, and more.

If you are interested in the Low Temperature Chillers, welcome to contact us.
