Product Description

Description:

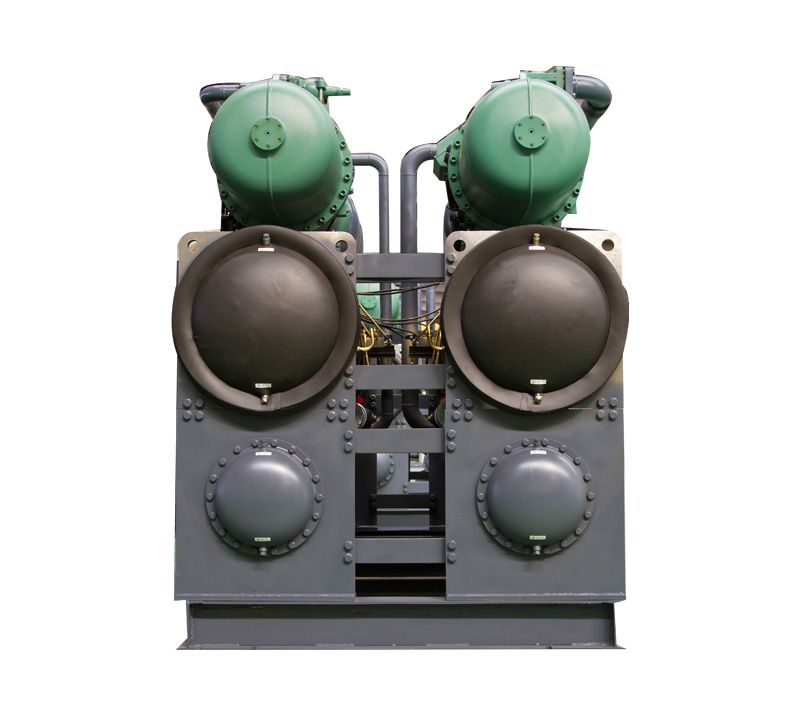

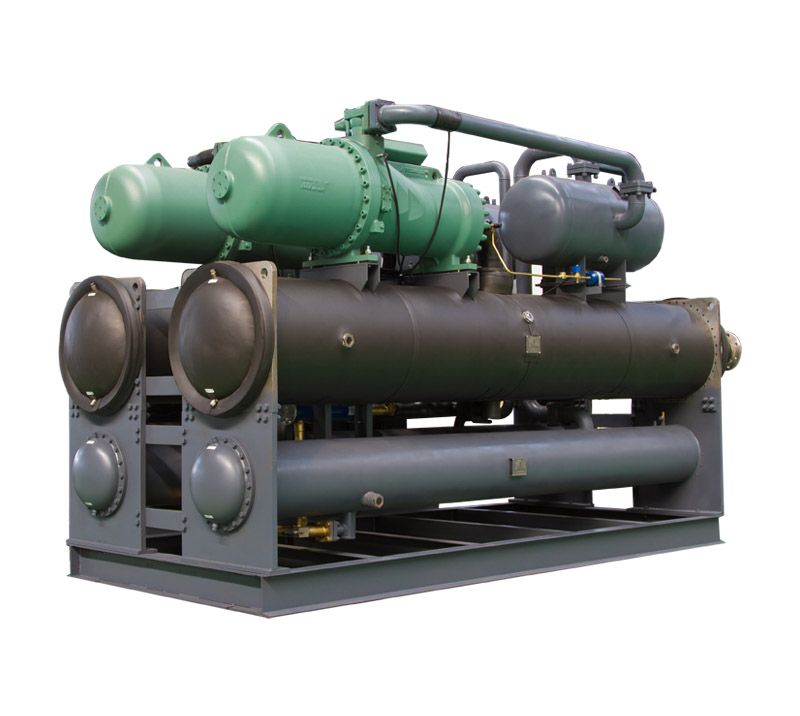

The series water chiller adopts efficient semi-closed screw compressor. the compressor adopts a 5:6 asymmetric high-efficiency screw rotor, which is graded or steplessly energy regulated. It is automatically adjusted according to load changes and is more energy efficient. The unit heat exchanger adopts high-efficiency heat exchange tube to improve the refrigeration efficiency, and the unit is equipped with multiple protections to make the unit operate safely and reliably.

Application areas:

Widely used in the process cooling of petrochemical, machinery, pharmaceutical, electronics, chemical and pharmaceutical intermediates. Cooling of the plating solution, hydraulic oil and machine tool coolant.

Features:

1. It adopts imported high-efficiency economizer semi-closed twin-screw compressor with high energy efficiency, reliable operation and long service life.

2. Adopt microcomputer controller, touch screen display, the screen can display the unit running status at any time, and can be displayed in two ways of graphical and text table parameters, at a glance. At the same time, it has a fault inquiry function, which is convenient for maintenance inspection.

3. Multiple protection functions: compressor exhaust over temperature, motor over temperature, cold water antifreeze and other temperature protection; over current, phase loss, reverse equal electrical protection; refrigerant system high and low pressure, oil level, water and other state protection.

4. Select the thermal expansion valve, solenoid valve, check valve and other control components of international famous brands to ensure efficient and reliable operation of the unit within a wide range of working conditions.

5. After the machine has passed the comprehensive inspection and the full-load operation test, it will be shipped with the refrigerant to ensure that the equipment can work after the water and electricity are in place.

Model		HTK-810YM/2	HTK-880YM/2	HTK-970YM/2	HTK-1260YM/2	HTK-1430YM/2	HTK-1740YM/2
Cooling Capacity (nominal conditions)	KW	806	878	966	1256	1434	1740
	Kcal/Hr	693160	755080	830760	1080160	1233240	1496400
	RT	229.17	249.64	274.67	357.12	407.73	494.74
Power	50HZ	3P-380V-50HZ
Input power(KW)		182.6	206.2	227.2	296.4	354	406.2
EER	COP	4.41	4.26	4.25	4.24	4.05	4.28
Refrigerant		R22
control mode		Electronic expansion valve
Comprosser	Mode	Semi-closed double screw
	Working style	Y-Δ/Δ-Δ
	Capacity	0,12.5%, 25%,37.5%, 50%,62.5%, 75%,87.5%, 100%
Condensor	Mode	Efficient external thread shell and tube type
	Cooling water	In 30℃/Out 35℃
	tempreture	In 30℃/Out 35℃
	Cooling water flow (m³/h)	173.3	188.8	207.7	270	308.3	374.1
	Pressure loss (Kpa)	55	55	55	58	58	58
	waterpipe size	DN125×2	DN125×2	DN125×2	DN150×2	DN150×2	DN200×2
Evaporater	mode	Acid and alkali resistant efficient internal thread shell and tube type
	Freeze water	In 2℃/Out 0℃
	tempreture	In 2℃/Out 0℃
	Freeze water flow (m³/h)	345.5	376.3	414	538.3	614.6	745.8
	Pressure loss (Kpa)	52	55	55	58	58	58
	waterpipe size	DN250	DN250	DN250	DN300	DN300	DN350
Safeguard		High and low pressure protection, exhaust overheating protection, safety valve, antifreezing protection, current protection,
Safeguard		electric leakage protection, compressor thermal protection, over current protection, fault phase protection, Oil level protection etc.
Size	L(mm)	4600	4600	4600	4800	4900	5000
	W(mm)	1460	1460	1460	1560	1640	1640
	H(mm)	1620	1620	1730	1850	1850	1880
Weight	Kg	4620	5760	6750	7700	7840	8100
Noise(dB)		69	69	70	71	72	73

Note:

1、Refrigerating capacity nominal conditions of condenser water inlet temperature 30℃,water outlet temperature 35℃,evaporator water inlet temperature 2℃,water outlet temperature 0℃

2、In order to ensure technology constantly updated, the above parameters are subject to change without prior notice

3、This unit can be customized heat recovery according to the customer request,hot recycled is 25%-30% of unit refrigerating capacity,indicate the hot recycled in custom units.The highest hot water temperature of the heat recovery up to 55 ℃.
