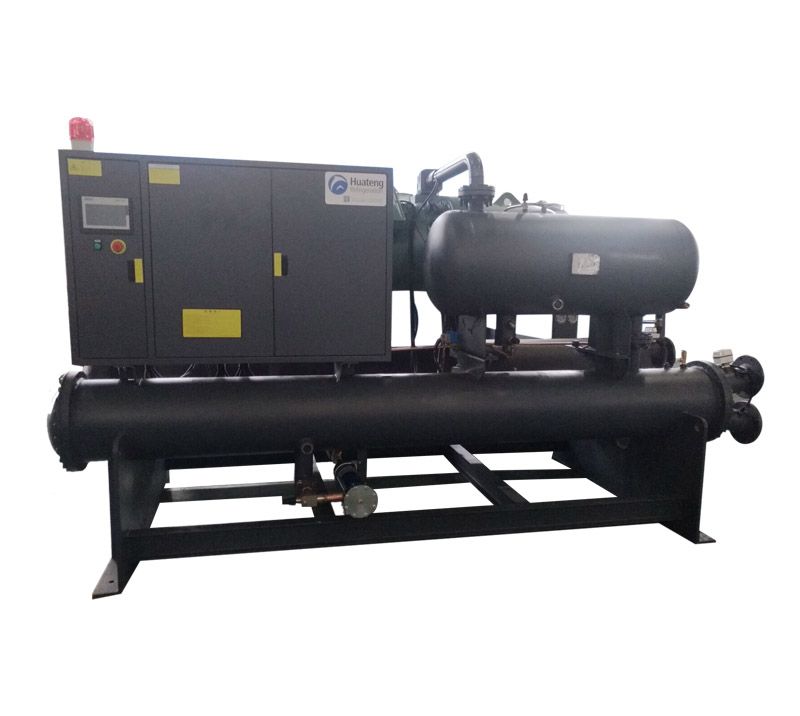

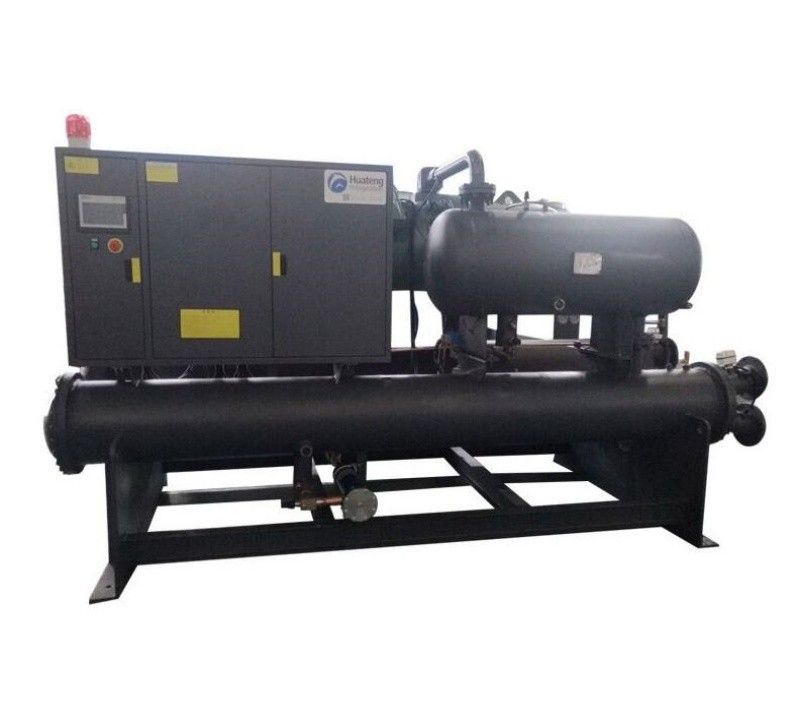

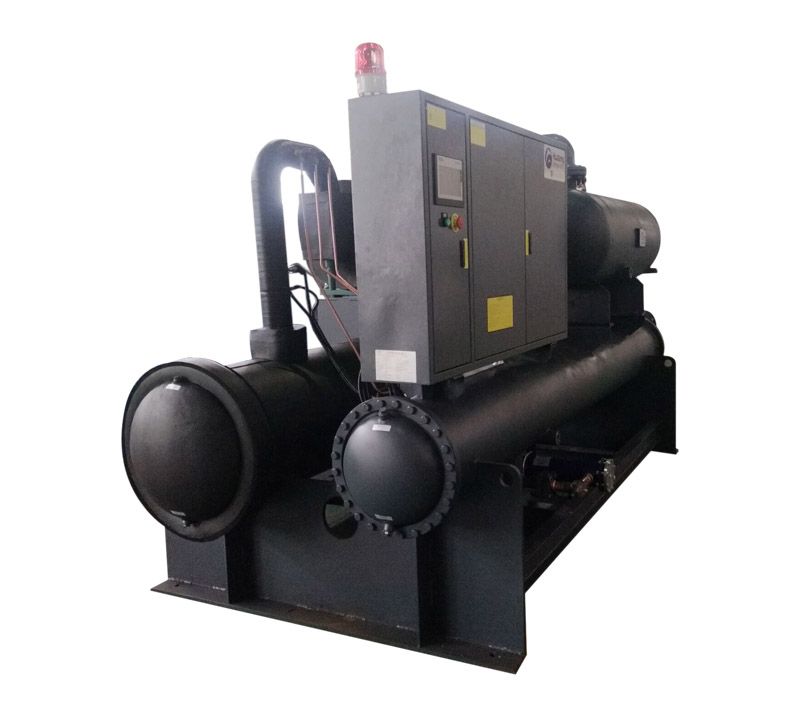

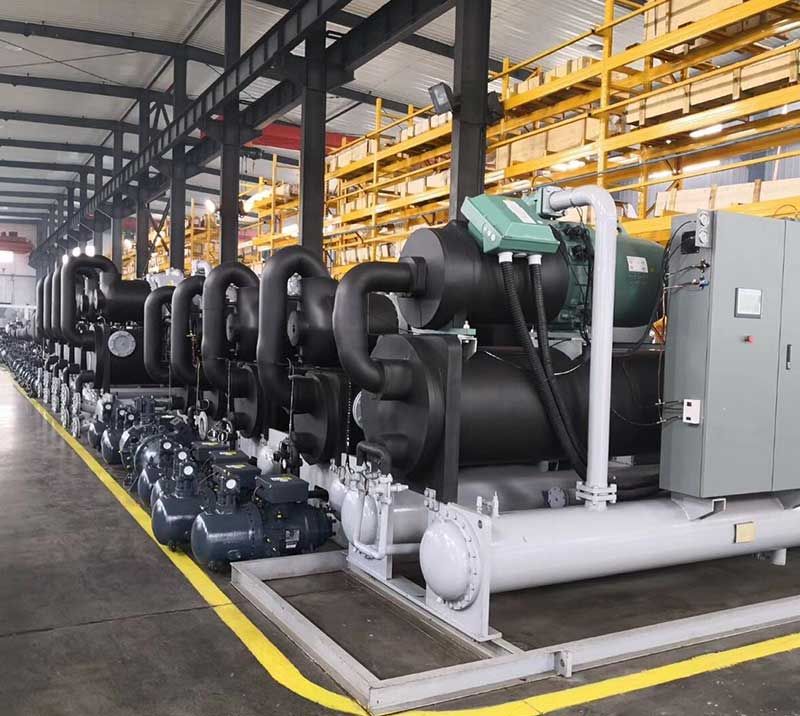

Flooded Type Screw Type Chiller

Inquire Now None Download

Product Description

Description:

The series water chiller adopts efficient semi-closed screw compressor. the compressor adopts a 5:6 asymmetric high-efficiency screw rotor, which is graded or steplessly energy regulated. It is automatically adjusted according to load changes and is more energy efficient. The unit heat exchanger adopts high-efficiency heat exchange tube to improve the refrigeration efficiency, and the unit is equipped with multiple protections to make the unit operate safely and reliably. Min.outlet temperature can be -60℃.

Features of chiller:

1. The unit adopts a semi-closed screw compressor. The compressor adopts a 5:6 asymmetric high-efficiency screw rotor, which is graded or steplessly energy regulated. It is automatically adjusted according to load changes and is more energy efficient.

2. The unit heat exchanger adopts high-efficiency heat exchange tube to improve the cooling efficiency. At the same time, in order to reduce the lubricating oil entering the heat exchanger, the unit increases the secondary oil content, minimizes the amount of oil entering the heat exchanger, and passes the specially designed ejector. The oil return device directs the lubricating oil in the heat exchanger back to the compressor to improve the refrigeration efficiency of the unit and also improve the reliability of the unit operation.

3. The unit is equipped with multiple protections to make the unit operate safely and reliably. The unit adopts direct cooling mode, which reduces the loss caused by the intermediate heat exchange and greatly reduces the running cost.

4. Environmentally friendly 134a refrigerant is used to improve unit operating efficiency. The unit is equipped with multiple protections to make the unit safe and reliable.

Flooded Type Water Cooled Screw Refrigeration Unit (R22)
Model		HTK-330M	HTK-390M	HTK-460M	HTK-520M	HTK-580M	HTK-650M	HTK-720M	HTK-800M	HTK-920M	HTK-1100M
Cooling	KW	330	392	460	518	581	653	720	795	920	1099
Capacity	Kcal/Hr	283800	337120	395600	445480	499660	561580	619200	683700	791200	945140
	RT	93.83	111.46	130.79	147.28	165.2	185.67	204.72	226.04	261.59	312.48
Power	50HZ	3P-380V-50HZ
Input power(KW)		60.3	71.8	83.2	92.8	104	116.9	128.9	142.2	163.3	197.6
EER	COP	5.47	5.46	5.53	5.58	5.59	5.59	5.59	5.59	5.63	5.56
Freezing medium		R22
control mode		Electronic expansion valve
Comprosser	Mode	Semi-closed double screw
	Working style	Y-Δ/Δ-Δ
	Capacity	0-25%-50%-75%-100%
Condensor	Mode	Efficient external thread shell and tube type
	Cooling water tempreture		In 30℃/Out 35℃
	Cooling water flow (m³/h)	71.0	84.3	98.9	111.4	124.9	140.4	154.8	170.9	197.8	236.3
	Pressure loss (Kpa)	55.0	55.0	55.0	58.0	58.0	58.0	60.0	61.0	61.0	65.0
	waterpipe	DN100	DN125	DN125	DN125	DN150	DN150	DN150	DN150	DN200	DN200
Evaporater	mode	Hydraulic filling evaporater
	Cooling water	In 12℃/Out 7℃
	tempreture
	Cooling water flow (m³/h)	56.8	67.4	79.1	89.1	99.9	112.3	123.8	136.7	158.2	189.0
	Hydraulic (Kpa)	52.0	55	55	58	58	58	58	58	61	61
	waterpipe	DN100	DN125	DN125	DN125	DN150	DN150	DN150	DN150	DN200	DN200
Safeguard		High and low pressure protection; overload protection; anti-phase protection, compressor over temperature protection; high pressure safety valve protection; oil pressure protection; exhaust over heat protection
Weight	Kg	1320	1480	2130	2560	3100	3500	3800	3580	4070	4150
Size	L	3600	3600	3600	3800	3800	3800	4000	4000	4000	4000
	W	1460	1460	1460	1560	1560	1640	1760	1760	1760	1760
	H	1520	1520	1630	1630	1650	1650	1800	1860	1910	1910
Noise(dB)		73	75	75	76	76	76	76	78	78	80

Note:

1. Above cooling capacity parameters are all based on the conditions of condensation temperature 40℃, evaporation temperature machine5℃.

2. We can make order according to your requirement.

3. Please indicate the hot recycled if needed, as the recycle rate can be up to 25%-30% of the unit refrigerating capacity, the temperature can be up to 55℃.
