Product Description

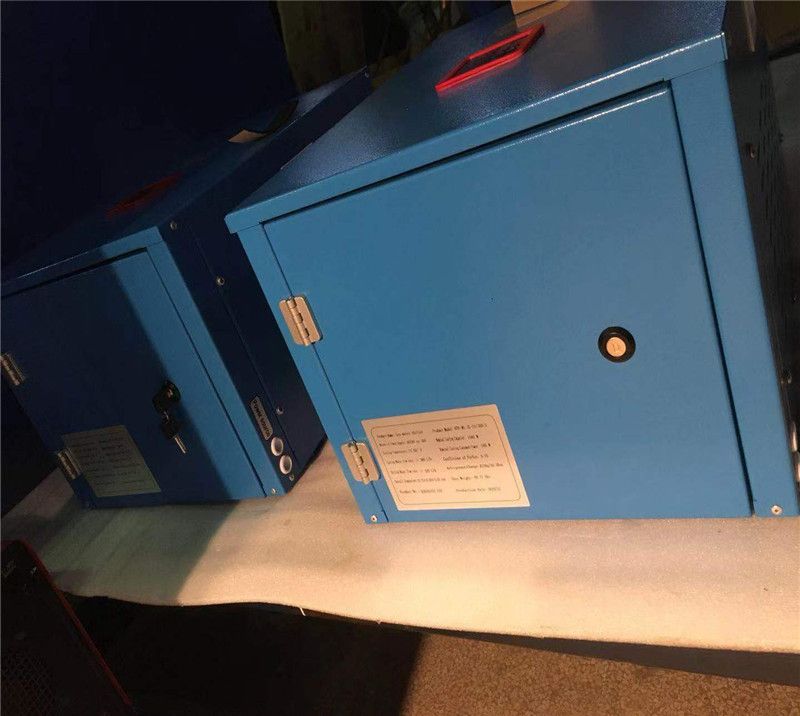

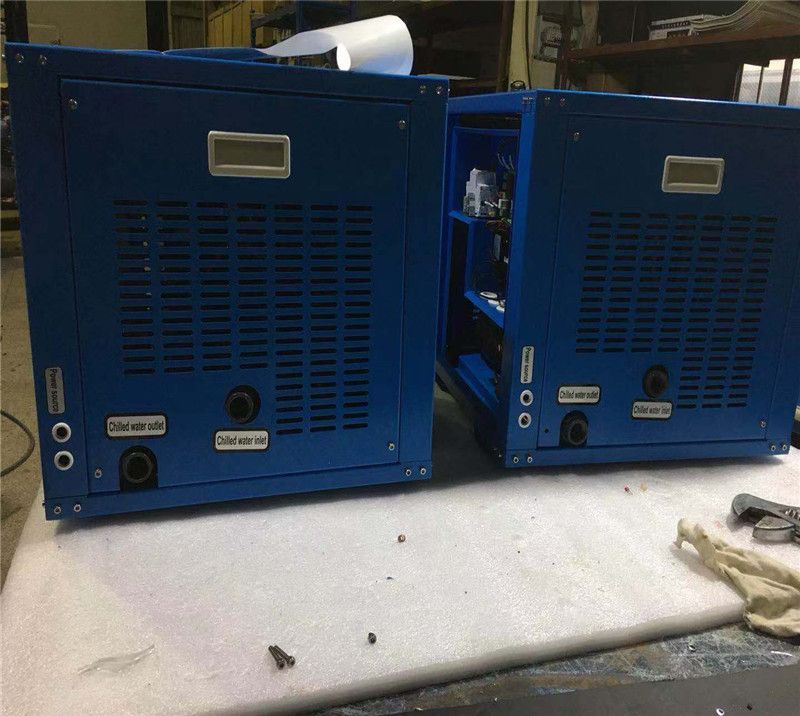

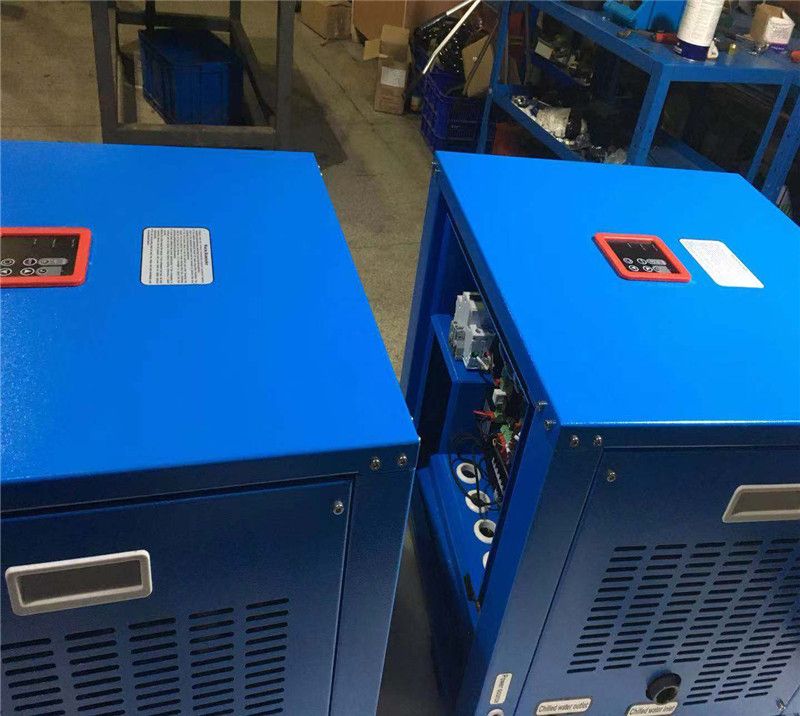

DC series small chillers use DC power supply, using coolant as heat transfer medium, transferring heat generated by other instruments or equipment that need to be cooled, and dissipating heat to the outside of the equipment through the refrigeration system, thus ensuring that the equipment works within the normal temperature range.
| Technicial parameter： | |||
| Small size DC air to water chiller for sea water parameter table | |||
| Item | Description | Unit | Parameter |
| 1 | Water cooled chiller | Model | HTB-M1.2F-24/36D-S |
| 2 | Power | DC24V/ DC36V | |
| 3 | Cooling capacity | W | 1200 |
| Kcal/h | 1032 | ||
| 4 | Power consumption | W | 320 |
| 5 | Running Amps | A | 13.6 |
| 6 | Compressor | Type | Small DC compressor |
| Quantity | 1 | ||
| Starting method | Direct start | ||
| 7 | Refrigerant | Type | R134A |
| Quantity | 400g | ||
| Control | Capillary | ||
| 9 | Evaporator | Type | Casing type heat exchanger- Titanium material |
| Water inlet temp (℃) | 30 | ||
| Water outlet temp (℃) | 24 | ||
| Water flow rate (L/h) | 300 | ||
| Water pipe | 3/4” | ||
| 10 | Condenser | Type | Finned type heat exchanger after electrophoresis treatment |
| Using ambient temp (℃) | 0-43 | ||
| Air volume (M3/h) | 450 | ||
| 13 | Dimension (estimated) | L*W*H（MM） | 508*500*475 |
| 14 | Weight (estimated) | KG | 48.48 |
| Configuration table: | |||
| High Performance Spare Parts & Accessories | |||
| Item | Specification | Brand | Country of origin |
| 1 | DC Compressor | Highly | China |
| 2 | Evaporator( Casing type heat exchanger- Titanium material) | Shenshi | China |
| 3 | Condenser( Finned type heat exchanger after electrophoresis treatment) | Customized | China (Huazhao) |
| 4 | Dry filter | Customized | China (Huazhao) |
| 5 | Capillary | Customized | China (Huazhao) |
| 6 | Microcomputer controller | Customized | China (Huazhao) |
| 7 | Pressure Switch | Match-Well | China |
| 8 | Refrigeration | DuPont | America |
| 9 | Fan | Maer/Dayang | China |
| 10 | Water line | PVC pipe | For sea salt water |
