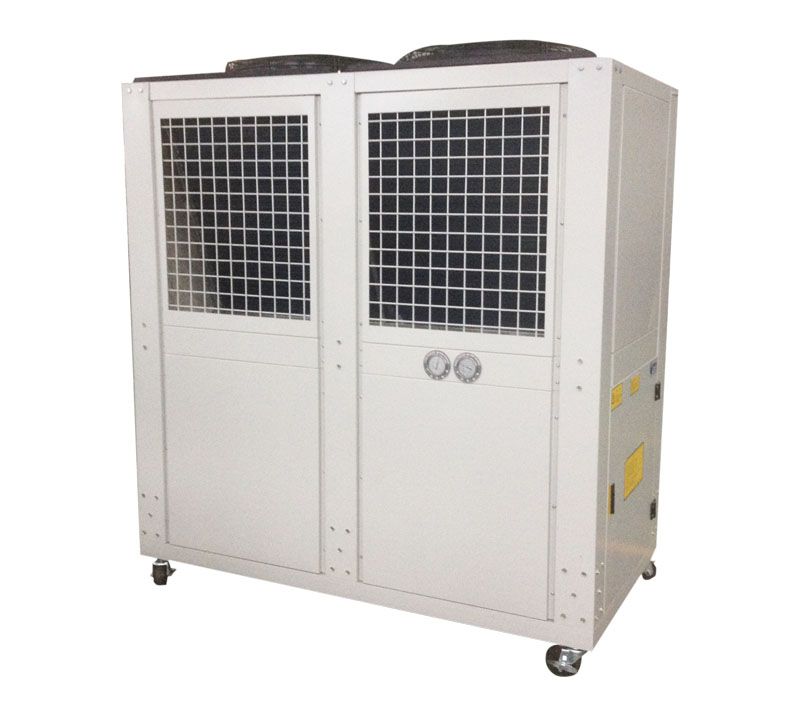

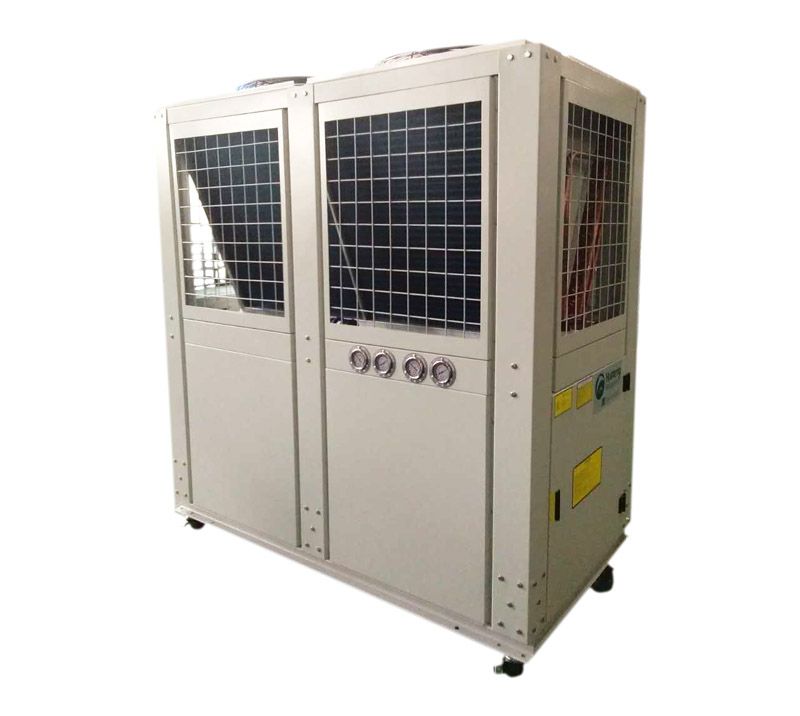

Industrial Air Cooled Chiller

Inquire Now Next Product Download

Product Description

The series modular air cooled scroll type chiller cooling capacity from 7KW to 120KW. This series of units integrates the characteristics of many other products, using imported full-closed scroll compressors, supplemented by high-efficiency heat exchangers and adopting microcomputer controllers, which makes the unit compact, reasonable layout, and convenient to use and maintain. The user simply connects the pipeline of the water system and the required power supply, then can put it into operation.

The Industrial Air Cooled Chiller is a state-of-the-art cooling solution designed to meet the rigorous demands of industrial applications. Engineered with precision and built for durability, this chiller offers unmatched performance, energy efficiency, and reliability, making it an essential component for various industrial processes. This industrial air cooled chiller is widely used: it can provide processed chilled water for industrial and mining enterprises such as textile, chemical and petroleum. The manufacturing technology of this product is mature and stable and reliable.

Features of industrial air cooled chiller:

1. Environmental protection

2. Energy efficient

3. Adopt an international brand compressor

4. The system is stable and reliable.

5. Electronic expansion valve throttle, adjust the range more accurately.

6. Modular design of the unit, the free combination of up to 10 modules can be connected, and one can be set to be the main module.

Safety system of industrial air cooled chiller::

1 Compressor reverse protective

2 Freeze protector protective

3 Refrigerant safety valve

4 Buzzer

5 High-pressure gauge and Low-pressure gauge

6 Power phase failure protector

7 Coil over-heat protector

8 Temperature auto-switch

9 Refrigerant shortage protective

Industrial Air Cooled Chiller Technical Specifications

Environment-friendly air cooled industrial chiller（R134A）
Model		HTB-M9F	HTB-M14F	HTB-M18F	HTB-M21F	HTB-M27F	HTB-M27F	HTB-M36F	HTB-M54F	HTB-M72F
Cooling Capacity	KW	8.8	13.5	18	21	27	27	36	54	72
	Kcal/Hr	7568	11610	15480	18060	23220	23220	30960	46440	61920
	RT	2.5	3.84	5.12	5.97	7.68	7.68	10.24	15.35	20.47
Power	50HZ	3P-380V-50HZ
Compressor	Mode	Full closed high efficient flexible scroll compressor
	Input power(KW)	2.7	4.29	5.6	6.3	8.3	8.58	11.2	16.8	22.4
	Rated load current(A)	5.9	10	12.1	13.8	19.1	20	24.2	36.3	48.4
Wiring specification		4	6	6	6	10	10	16	25	35
Add unloading way		0,100%					0,50%,100%		0,33%,66%, 100%	0,25%,50%, 75%,100%
Condensor	Cooling fan(KW)	0.18×2	0.24×2	0.3×2	0.6×2	0.6×2	0.78×2	0.78×2	0.78×3	0.85×3
Condensor	Structure form	Efficient internal thread copper pipe hydrophilic aluminium fin+Auxiliary water spray falling film technology
Evaporator	Freeze water temp（℃）	Inlet temp 12℃/outlet temp 7℃
	Freeze water flow（m³/h)	1.51	2.32	3.1	3.61	4.64	4.64	6.19	9.29	12.38
	Waterpipe diameter(DN)	32	32	32	40	40	40	40	50	50
Safeguard		Overload protection, overpressure, inverse phase, open phase protection, exhaust temperature protection, abnormal refrigerant protection, water pump chain protection, etc.
Size	L(mm)	1200	1250	1400	1400	1700	1700	1700	2600	2800
	W(mm)	650	900	900	900	1000	1000	1000	1100	1200
	H(mm)	1250	1720	1750	1750	1900	1900	1920	1950	1980
Units Weight	Kg	220	280	300	320	350	420	540	610	690

Note:

1、Above parameters refrigerating capacity based on the condensation temperature 40℃, evaporation temperature 2℃。

2、Above are Huazhao's industrial water-cooled water chiller parameters, the evaporator is shell and tube type, if there is a demand for the built-in bank、non-standard products of the water pump, can be designed and manufactured according to the concrete situation.

3、In order to ensure technology is constantly updated, the above parameters are subject to change without prior notice

4、The specific parameters for non-standard products, welcome consulting our technical department. Customizable based on model and capacity

Industrial Air Cooled Chiller Applications

● Manufacturing: Provides precise temperature control essential for processes in plastics, pharmaceuticals, and food and beverage production.

● Chemical Processing: Maintains optimal temperatures for chemical reactions, ensuring product quality and process efficiency.

● HVAC Systems: Enhances the performance of large-scale HVAC systems in commercial and industrial buildings.

● Data Centers: Ensures the consistent and reliable cooling necessary to maintain the performance and longevity of critical IT equipment.

The Industrial Air Cooled Chiller is the ideal solution for businesses seeking a reliable, efficient, and eco-friendly cooling system. Its advanced features and robust construction make it a valuable asset in any industrial setting, ensuring optimal performance and sustainability. Invest in our chiller to enhance your operational efficiency and meet your cooling needs with confidence.
