Product Description

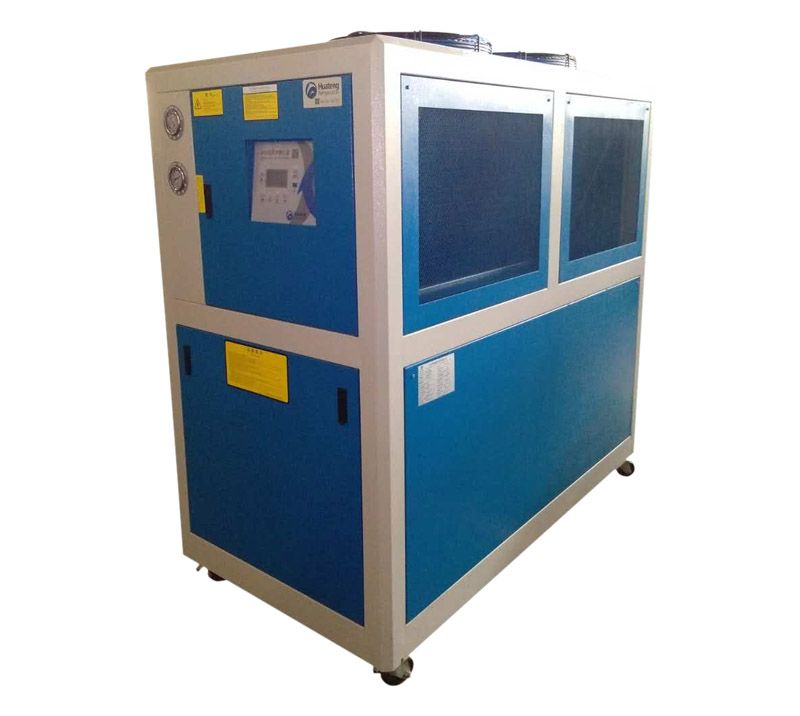

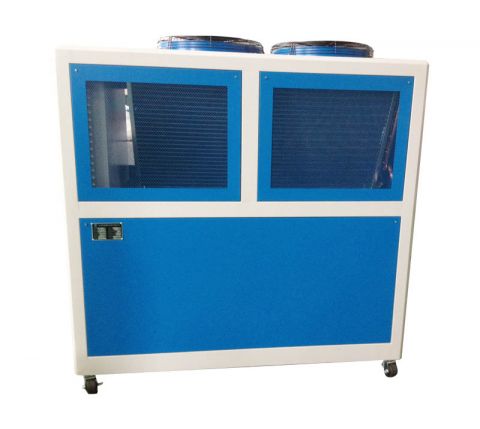

HuaZhao Micro Computer Controllers Air Cooled Chiller is a state-of-the-art cooling solution designed for precision temperature control in industrial and laboratory settings. This compact, modular system offers cooling capacities ranging from 7KW to 120KW and is engineered for efficiency and ease of maintenance.
Our Air Cooled Water Chillers for Sale integrate imported full-closed scroll compressors with high-efficiency heat exchangers and microcomputer controllers, ensuring a compact layout and straightforward installation. Simply connect the water system pipeline and power supply to put the unit into operation.
The series modular air cooled scroll type chiller cooling capacity from 7KW to 120KW. This series units integrates the characteristics of many other products, using imported full-closed scroll compressors, supplemented by high-efficiency heat exchangers and adopts microcomputer controllers, which makes the unit compact, reasonable layout, convenient to use and maintain. The user just need simply connect the pipeline of the water system and the required power supply,then can put into operation.
This series of chillers is widely used: it can provide process chilled water for industrial and mining enterprises such as textile, chemical and petroleum. The manufacturing technology of this product is mature and stable and reliable.
1. Employing original SCROLL compressor, compressor may according loading auto-adjust, add level sensor for prevent compressor low-loading to luck-oil, extent use life
2. Employing all-new imported high class component
3. Employing two sets of compressor which can be used jointly or independent
4. Switch control, easy operation and maintenance
5. The weld of brass pipe is non-oxidization
6. Condenser and Evaporator both to conform GB150, GB151, TB/T4750-2003, operation safe
1 Compressor reverse protective
2 Freeze protector protective
3 Refrigerant safety valve
4 Buzzer
5 High-pressure gauge and Low-pressure gauge
6 Power phase failure protector
7 Coil over-heat protector
8 Temperature auto-switch
9 Refrigerant shortage protective
Air cooled industrial chiller (R22) | |||||||||||
Model | HTB-7F | HTB-14F | HTB-21F | HTB-28F | HTB-32F | HTB-40F | HTB-41F | HTB-56F | HTB-84F | HTB-112F | |
Cooling Capacity | KW | 7.2 | 13.5 | 20.7 | 28 | 31.5 | 40 | 41.4 | 56 | 84 | 112 |
Kcal/Hr | 6192 | 11610 | 17802 | 24080 | 27090 | 34400 | 35604 | 48160 | 72240 | 96320 | |
RT | 2.05 | 3.84 | 5.89 | 7.96 | 8.96 | 11.37 | 11.77 | 15.92 | 23.88 | 31.85 | |
Power | 50HZ | 3P-380V-50HZ | |||||||||
Comprosser | Mode | Full closed high efficiency flexible scroll compressor | |||||||||
Input power(KW) | 2.4 | 4.2 | 6.1 | 8.1 | 9.2 | 12.4 | 12.2 | 16.2 | 24.3 | 32.4 | |
Rated load current(A) | 4.4 | 9 | 11.6 | 14.6 | 16.2 | 23.9 | 23.2 | 29.2 | 43.8 | 58.4 | |
Wiring specification | 4 | 4 | 6 | 6 | 6 | 10 | 10 | 16 | 25 | 35 | |
Add unloading way | 0,100% | 0,50%,100% | 0,33%,66%, 100% | 0,25%,50%, 75%,100% | |||||||
Condensor | Cooling fan(KW) | 0.2 | 0.18×2 | 0.24×2 | 0.3×2 | 0.6×2 | 0.6×2 | 0.78×2 | 0.78×2 | 0.78×3 | 0.85×3 |
Structure form | Efficient internal thread copper pipe hydrophilic aluminium fin+Auxiliary water spray falling film technology | ||||||||||
Evaporater | Freeze water temp(℃) | Inlet temp 12℃/outlet temp 7℃ | |||||||||
Freeze water flow(m³/h) | 1.24 | 2.32 | 3.56 | 4.82 | 5.42 | 6.88 | 7.12 | 9.63 | 14.45 | 19.26 | |
Waterpipe diameter(DN) | 32 | 32 | 40 | 40 | 40 | 40 | 40 | 50 | 65 | 80 | |
Safeguard | Overload protection,overpressure,inverse phase,open phase protection,exhaust temperature protection,abnormal refrigerant protection,water pump chain protection, etc. | ||||||||||
Size | L(mm) | 960 | 1200 | 1250 | 1400 | 1400 | 1700 | 1700 | 1700 | 2600 | 2800 |
W(mm) | 700 | 650 | 900 | 900 | 900 | 1000 | 1000 | 1000 | 1100 | 1200 | |
H(mm) | 1120 | 1250 | 1720 | 1750 | 1750 | 1900 | 1900 | 1920 | 1950 | 1980 | |
Units Weight | Kg | 190 | 220 | 280 | 300 | 320 | 350 | 420 | 540 | 610 | 690 |
Note:
1、Above parameters refrigerating capacity based on the condensation temperature 40℃, evaporation temperature 2℃。
2、Above is my company's industrial water-cooled water chiller parameters, evaporator is shell and tube type, if there is a demand for the built-in bank、non-standard products of water pump, can be designed and manufactured according to the concrete situation.
3、In order to ensure technology constantly updated, the above parameters are subject to change without prior notice
4、The specific parameters for non-standard products, welcome consulting our technical department.
Advanced Control: Utilizes a Eurotherm 3216 Series 1/16 DIN microprocessor controller for high-precision temperature management and remote monitoring.
Efficient Design: Employs original SCROLL compressors that auto-adjust based on load, enhancing the unit's longevity and performance.
Modular Construction: Offers easy transport, installation, and removal thanks to its modular design, making maintenance both efficient and user-friendly.
Robust Components: Features all-new imported high-class components and non-oxidizing brass pipe welds, ensuring durability in demanding environments.
Safety System: Equipped with multiple safety features including compressor reverse protection, freeze protection, refrigerant safety valve, and power
phase failure protection for operational reliability.
This Air Cooled Scroll Chiller Unit Petroleum-grade design complies with GB150, GB151, and TB/T4750-2003 standards, ensuring safe operation in industries such as textile, chemical, and petroleum. The unit features dual compressor sets that can work jointly or independently and includes a comprehensive safety system with high/low refrigerant pressure switches, freeze stat protection, and temperature auto-switch mechanisms.
Designed to meet specific industry needs, the Micro Computer Controllers Air Cooled Chiller can be customized with various control options—from solid-state to PLC-compatible controllers—and hardware modifications such as pump adjustments and tank upgrades. This versatility makes it ideal for industrial applications, including:
Industrial and mining enterprises
Process chilled water supply for textile, chemical, and petroleum sectors
Laboratory cooling applications
Our Air Cooled Water Chillers for Sale are backed by mature manufacturing technology and reliable service support, ensuring that customers receive products that meet the highest standards of quality and performance. With our extensive expertise and commitment to E-E-A-T principles—Experience, Expertise, Authoritativeness, and Trustworthiness—we provide comprehensive after-sales support and technical assistance. Click here to check out the program support and services we offer around the world!
For industries seeking efficient and reliable cooling solutions, the HuaZhao Micro Computer Controllers Air Cooled Chiller stands out with its advanced technology, robust design, and ease of use. Trust in our Safety System Air Cooled Chiller Unit Exporter Supply to deliver consistent, high-performance cooling right to your facility.
