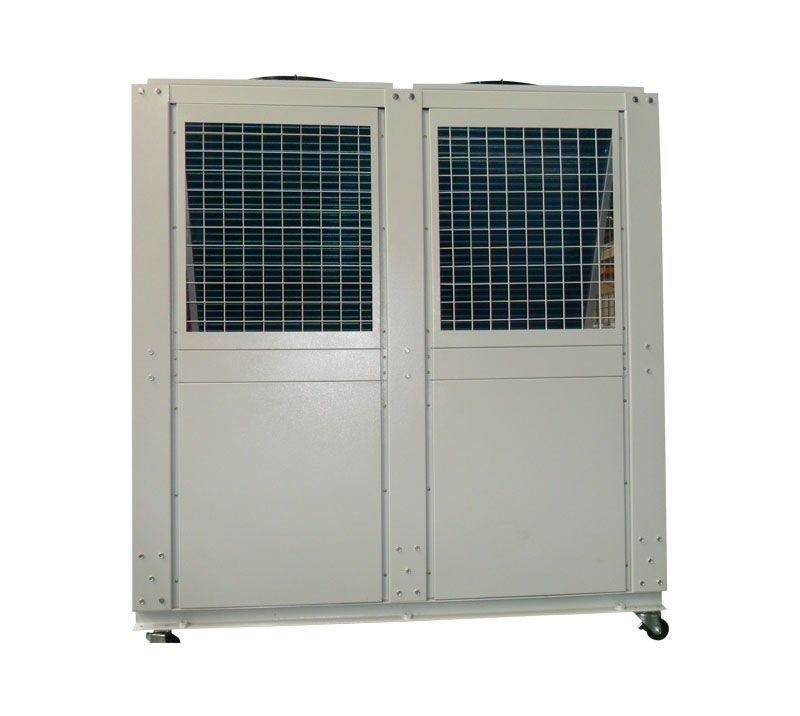

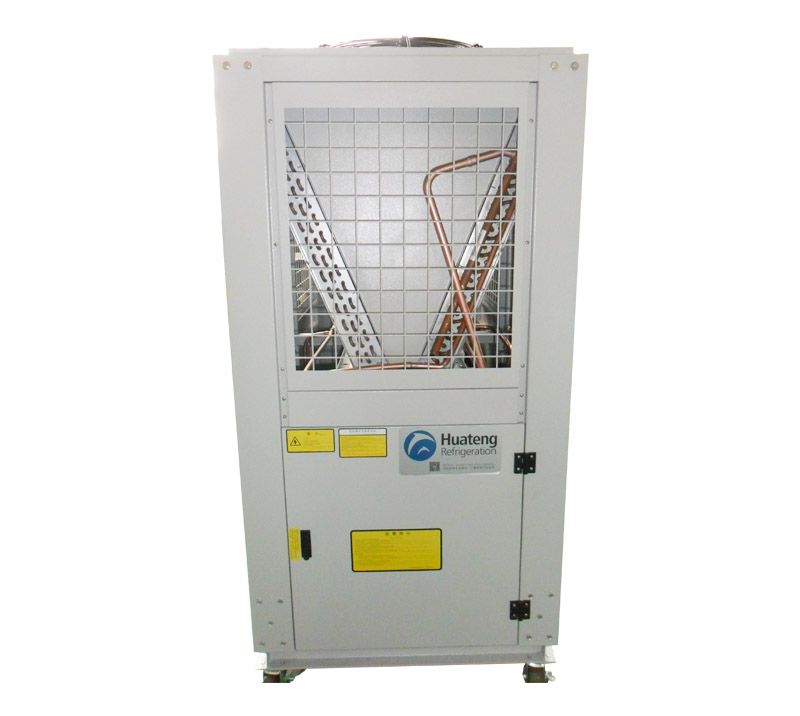

Air Cooled Scroll Chiller

Inquire Now Next Product Download

Product Description

For over 20 years, HuaZhao has been a trusted name in the cooling industry, offering premium China Air Cooled Scroll Chillers. With a reputation for quality and reliability, HuaZhao’s chillers deliver efficient cooling solutions tailored to diverse industrial needs. Whether you require an Water Cooled Chiller or other Custom Cooling Systems, HuaZhao provides a range of cutting-edge models to meet your specific requirements.

Description:

The series modular air cooled scroll type chiller cooling capacity from 7KW to 120KW. This series units integrates the characteristics of many other products, using imported full-closed scroll compressors, supplemented by high-efficiency heat exchangers and adopts microcomputer controllers, which makes the unit compact, reasonable layout, convenient to use and maintain. The user just need simply connect the pipeline of the water system and the required power supply,then can put into operation.

This series of chillers is widely used: it can provide process chilled water for industrial and mining enterprises such as textile, chemical and petroleum. The manufacturing technology of this product is mature and stable and reliable.

Features of HuaZhao Air Cooled Scroll Chillers

High-Quality Components

Scroll Compressors: Equipped with original SCROLL compressors capable of auto-adjusting based on load, extending the unit's lifespan.

Top-Class Components: All-new imported parts ensure stable and reliable performance.

Flexible Operation

Dual compressor systems can operate jointly or independently, enhancing energy efficiency.

Switch Control: Simplifies operation and maintenance.

Robust Construction

Non-oxidizing brass pipe welds ensure durability.

Condensers and evaporators conform to GB150, GB151, and TB/T4750-2003 standards for safe operation.

Safety system:

1 Compressor reverse protective

2 Freeze protector protective

3 Refrigerant safety valve

4 Buzzer

5 High-pressure gauge and Low-pressure gauge

6 Power phase failure protector

7 Coil over-heat protector

8 Temperature auto-switch

9 Refrigerant shortage protective

Product Parameters

Environment-friendly air cooled industrial chiller（R134A）
Model		HTB-M9F	HTB-M14F	HTB-M18F	HTB-M21F	HTB-M27F	HTB-M27F	HTB-M36F	HTB-M54F	HTB-M72F
Cooling Capacity	KW	8.8	13.5	18	21	27	27	36	54	72
	Kcal/Hr	7568	11610	15480	18060	23220	23220	30960	46440	61920
	RT	2.5	3.84	5.12	5.97	7.68	7.68	10.24	15.35	20.47
Power	50HZ	3P-380V-50HZ
Comprosser	Mode	Full closed high efficiency flexible scroll compressor
	Input power(KW)	2.7	4.29	5.6	6.3	8.3	8.58	11.2	16.8	22.4
	Rated load current(A)	5.9	10	12.1	13.8	19.1	20	24.2	36.3	48.4
Wiring specification		4	6	6	6	10	10	16	25	35
Add unloading way		0,100%					0,50%,100%		0,33%,66%, 100%	0,25%,50%, 75%,100%
Condensor	Cooling fan(KW)	0.18×2	0.24×2	0.3×2	0.6×2	0.6×2	0.78×2	0.78×2	0.78×3	0.85×3
Condensor	Structure form	Efficient internal thread copper pipe hydrophilic aluminium fin+Auxiliary water spray falling film technology
Evaporater	Freeze water temp（℃）	Inlet temp 12℃/outlet temp 7℃
	Freeze water flow（m³/h)	1.51	2.32	3.1	3.61	4.64	4.64	6.19	9.29	12.38
	Waterpipe diameter(DN)	32	32	32	40	40	40	40	50	50
Safeguard		Overload protection,overpressure,inverse phase,open phase protection,exhaust temperature protection,abnormal refrigerant protection,water pump chain protection, etc.
Size	L(mm)	1200	1250	1400	1400	1700	1700	1700	2600	2800
	W(mm)	650	900	900	900	1000	1000	1000	1100	1200
	H(mm)	1250	1720	1750	1750	1900	1900	1920	1950	1980
Units Weight	Kg	220	280	300	320	350	420	540	610	690

Why Choose HuaZhao for Your Air Cooled Cooling Needs?

Versatility Across Applications: Suitable for textiles, chemicals, petroleum, and more.
Mature Technology: Proven manufacturing processes ensure consistent quality.
Diverse Models: HuaZhao offers a wide range of options, including the Air-Cooled Industrial DC Power Supply and other specialized chillers.

Note:

1、Above parameters refrigerating capacity based on the condensation temperature 40℃, evaporation temperature 2℃。

2、Above is my company's industrial water-cooled water chiller parameters, evaporator is shell and tube type, if there is a demand for the built-in bank、non-standard products of water pump, can be designed and manufactured according to the concrete situation.

3、In order to ensure technology constantly updated, the above parameters are subject to change without prior notice

4、The specific parameters for non-standard products, welcome consulting our technical department.
